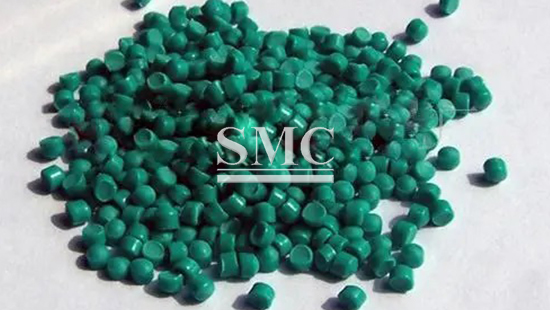

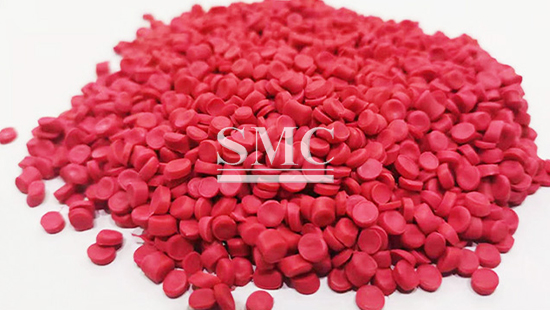

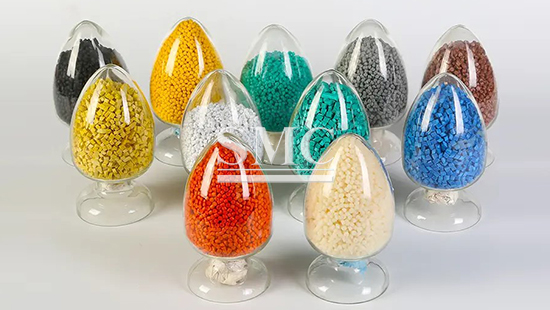

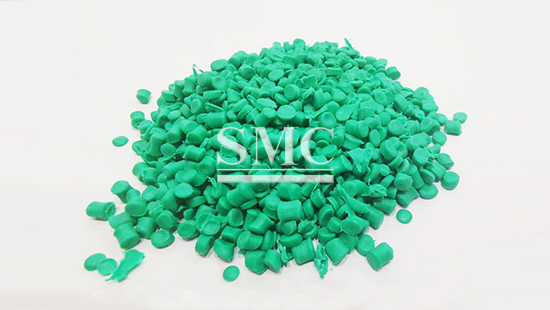

Irradiation Cross-linkable Insulating Material
Material: Polyolefin, Halogen-free, Non-toxic flame retardant, Smoke suppressant, Antioxidant
Standard: JB/T10436-2004
Compression ratio: 1:1.2-1:2
Shanghai Metal Corporation is a leading Irradiation Cross-linkable Insulating Material manufacturer and supplier.
The Irradiation Cross-linkable Insulating Material is mainly made of polyolefin as the main raw material, adding functional additives such as halogen-free and non-toxic flame retardants, smoke suppressants, antioxidants, and processing aids. After internal mixing, it is extruded and granulated. This product has good processing performance, insulation performance, and physical and mechanical properties. It also complies with ROHS testing standards. Suitable for locomotive cables, marine cables, power cables, communication cables, oil platform cables, etc. that require environmental protection and flame retardancy. We rely heavily on technological innovation, adopt the most advanced international processing technology, and strictly follow the ISO9001:2015 quality system standard for production, and gradually developing 10 production lines.
If you want to know more about Irradiation Cross-linkable Insulating Material and Cable Sheath Material，please feel free to contact us. We will reply you within 24 hours.
|
Technical Specifications |
||
|
Density |
g/cm³ |
1.46 |
|
Tensile Strength |
Mpa |
12.8 |
|
Elongation at Break |
% |
190 |
|
Air Aging |
℃×h |
158×168 |
|
Change Ratio of Tensile Strength |
% |
7 |
|
Change of Elongation at Break |
% |
-6 |
|
Brittle Temperature |
℃ |
-25 |
|
20℃ Volume-Resistivity |
Ω.cm |
3.9×10^13 |
|
Dielectric Strength |
℃ |
29 |
|
Smoke Density(With/Without Smoke) |
/ |
165/39 |
|
Oxygen Index |
/ |
33 |
|
PH |
/ |
5.6 |
|
Conductivity |
MV/m |
1.1 |
Packaging of the Irradiation Cross-linkable Insulating Material
The inner bag is an aluminum plastic composite bag, and the outer bag is a paper plastic composite bag, waterproof and moisture-proof. Each bag has a net weight of 25KG (± 0.2KG) or is packaged according to customer requirements.
