Aluminium / Steel Transition Joint / Bimetallic Joint

    Base material: Steel - LRA Shipplate Gr.A or St 52-3N


    Intermediate layer: Pure aluminium - Al 99,5 (Alloy 1050A)



    Surface layer: Corrosion resistant al. - AlMg4,5Mn (Alloy 5083)

Product Detail

Shanghai Metal Corporation is a leading supplier and manufacturer for Aluminium / Steel Transition Joint / Bimetallic Joint and we can offer follwoing Shipping class certificate: Lloyd’s, TUV, Stoomwezen, GL, DNV, ABS, Bureau Veritas, etc..

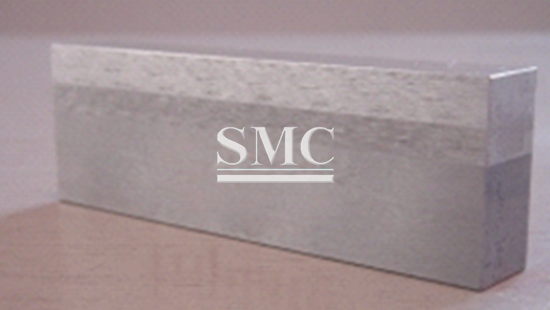

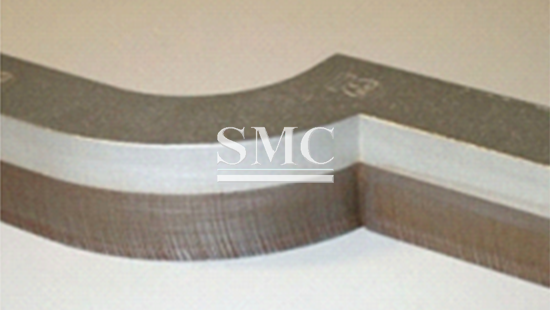

  • Transit joint is a composition of three layers: steel, pure aluminium and sea water corrosion resistant aluminium.

    These three layers are homogeneously bonded together in a vacuum environment, with the aid of explosives (explosion cladded, welded or plated).

    Shipping class certificate: Lloyd’s, TUV, Stoomwezen, GL, DNV, ABS, Bureau Veritas, etc.








  • • Short delivery time: complete production under one roof

    • Excellent process control (no weather influences and circumstances)

    • Because of vacuum, less explosives are required.

    o As results:

       Less deformation

       Hardness of the clad plate slightly increase

    • Costs saving: thin layer of expensive material cladded on a thicker layer of cheap material.

    • Metal combinations possible which are conventional impossible to weld.

    • Original metal properties maintain.

    • Joint/bond stronger than the weakest material.

    • Oxide free atomic bond

    • Electrical resistance of anode / cathode blocks nil.

    • Required clad layer thickness in 1 step realized

    • Smooth surface after cladding

    • Intermediate quality control not necessary

If you want to know more about our  Aluminium / Steel Transition Joint / Bimetallic Joint price, please feel free to contact us, we will reply you within 24 hours.
