Transformer Components

Enameled Wire--Enamel Wire, Enamelling Wire, Enameled Magnet Wire for Transformer Components

    Flat wire thickness: 0.80mm - 5.60mm



    Flat wire width: 2.00mm - 16.00mm



    Flat wire width/thickness ratio: 1.4

Specifications of Enameled Wire:
1) Flat wire thickness: 0.80mm - 5.60mm
2) Flat wire width: 2.00mm - 16.00mm
3) Flat wire width/thickness ratio:1.4
   a) Copper wire: 0.1mm - 5.0mm
   b) Aluminum wire: 0.2mm - 6.5mm
4) Wire diameter: 0.1mm - 6.5mm
5) Types: enameled copper wire, enameled aluminum wire
6) Standard: IEC 60317-16, 60317-16/28, MW36 60317-29 BS6811, MW18 60317-18, MW20 60317-47
7) Thermal Class:120°C ,130°C ,155°C, 180°C, 200°C, 300°C
8) Cross section range: 2mm2 - 80mm2
9) Range of insulation thickness: IEC60317-0-2 G1, 0.06mm - 0.11mm G2, 0.12mm - 0.17mm
10) Enamel base coat:
     a)Polyester
     b)Modified Polyester
     c)Polyester-Imide
     d)Polyvinyl fomal Polyimide

11) Heat shock:155°C -300°C


Features of Enameled Wire:
1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8)Good chemical resistance
9) Outstanding mechanical and chemical property

Manufacturing of Enameled Wire

Packaging of Enameled Wire

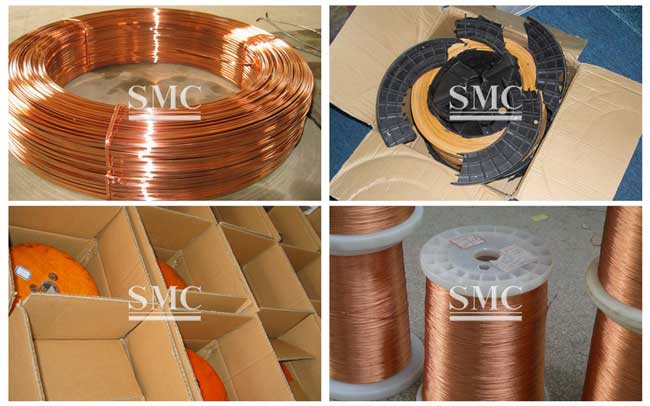

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of  Enameled Wire:

1) 120 degree flat enameled wire for oil-immersed transformer

2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil

3) 200 degree flat enameled wire works constantly in high temperature

4) 240 degree flat enameled wire for magnet coils of aviation, military and marine appication
