Mesh Size: 38*38,50*50 and customized


    Height: 25mm, 38mm, 50mm and customized


    Resin Types: ONFR, OFR, ISOFR, VEFR, PHE

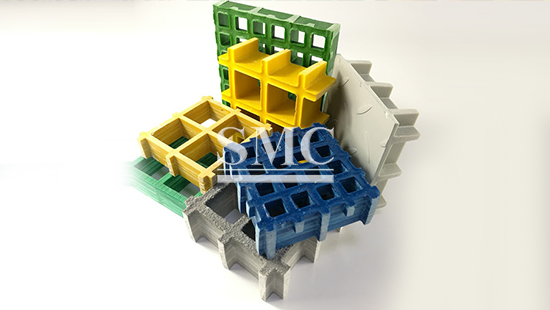

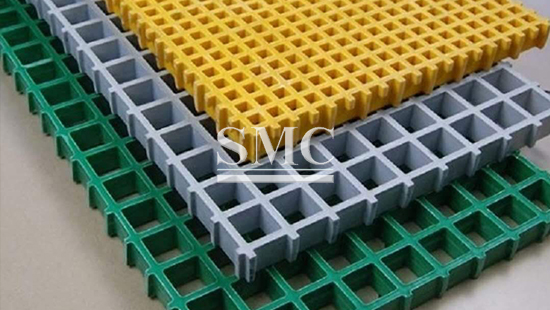

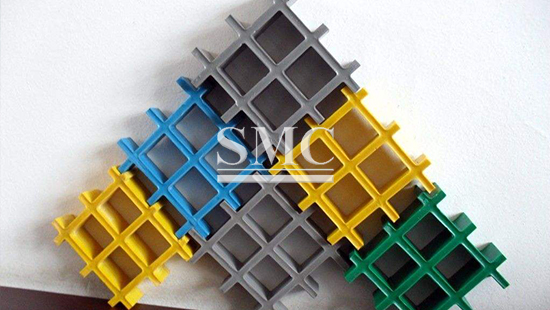

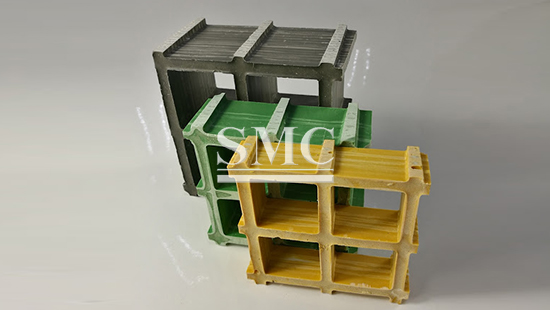

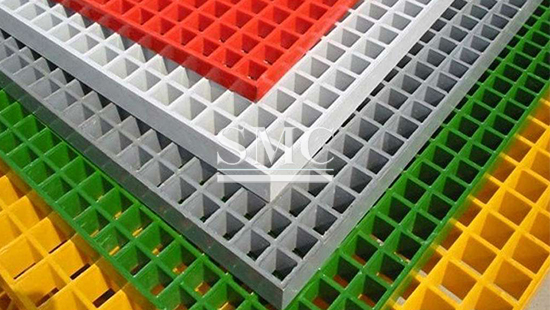

Shanghai Metal Corporation is a leading FRP Moulded grating manufacturer and supplier.

Our supplied FRP Moulded grating is manufactured in an open, heated mold system by professional skilled workers. Continuous glass roving is laid down in the mold in alternating layers in both directions and completely wetted out with resin. This continuous process produces an integral plates which provides excellent corrosion resistance as well as bi-directioanl strength.

If you want to know more about our FRP Moulded grating, please feel free to contact us, we will reply you within 24 hours.


FRP Moulded Grating Surface:

1. Concave Surface

2. Grit Surface

3. Smooth Surface



Technical Information of FRP Moulded grating:


No.

Deep mm

Mesh Sizemm

Panel Size Availablemm

Open Area %

Unit Weight kg/m²

1

13

38*38

1220*3660

68

6.3

2

13

50*50

1220*3660

78

5.8

3

13

38*38+19*19

1220*3660

40

10.8

4

14

40*40+20*20

1007*4047

42

10.5

5

22

40*40+20*20

1007*4047

42

15

6

25

38*38

1220*3660/1000*4038

68

12.7

7

25

38*38+19*19

1220*3660

40

16.6

8

25

40*40

1007*4047

66

12.5

9

25

100*25

1007*3007

66

13

10

25

101.6*25.4

1220*3660

64

15.2

11

30

38*38

1220*3660/1000*4038

68

15

12

30

38*38+19*19

1220*3660/1000*4038

40

18.6

13

30

40*40+20*20

1007*4047

42

18

14

30

38*38+12*12*12

1220*3660/1000*4038

30

22

15

38

38*38

1525*3050/1220*3660/1000*4038

68

19

16

38

38*38+19*19

1220*3660

40

23.7

17

38

40*40+20*20

1007*4047

42

23.5

18

38

38*152

1220*3660

66

19

19

40

40*40

1007*4047

66

20

20

50

38*38

1220*3660

56

42

21

50

50*50

1220*3660

78

21.2

22

60

38*38

1220*3660

54

51.5

Packaging of FRP Moulded Grating:
