Specifications of Galvanized Serrated Steel Grating:
1) The shape of Serrated type
2) Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mm are recommended
3) Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended
4) Surface treatment: Hot-dip galvanizing, paint or other anti-corrosive coatings are available, of which hot-dip galvanizing is generally recommended
5) Material: Q235 in line with GB/T700 steel
6) Tolerance
The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

7) Standard:

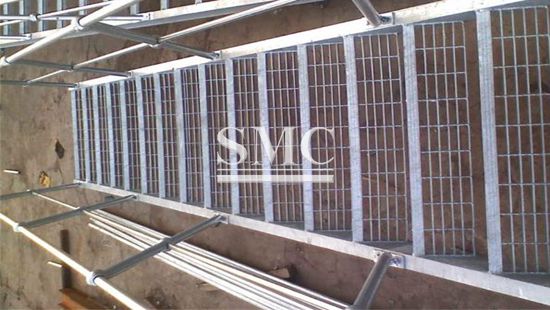

Stair treads are divided into four models due to whether the front checkered plate and the mode of connection with ladder beam,
labeled T1,T2, T3,T4,T5,T6.
T1: Welding fixing stair tread without front plate.
T2: Bolt fastening stair tread without front.
T3: Welding fixing stair tread with front checkered  plate.
T4: Bolt fastening stair tread with front checkered plate.
T5: Welding fixing stair tread without front Anti-slip strip.
T6: Bolt fastening stair tread with front Anti-slip strip.

Description of Galvanized Serrated Steel Grating:

1) Bearing bar: 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

2) US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'', etc.

3) Bearing bar pitch (mm): 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65, etc.

4) US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2, etc.

5) Cross bar: 5x5, 6x6, 8x8mm (twisted bar or round bar)

6) Cross bar pitch: 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement

7) Flat bar type: Plain, Serrated (tooth-like), I bar (I section)

8) Materials: Low carbon steel (Q275/Q235/Q195, ASTM A36, A1011, A569, S275JR, SS304, SS400, UK: 43A), Stainless steel, aluminum alloy, etc.

9) Galvanizing standard: CN: GB/T13912, US: ASTM (A123), UK: BS729

10) Steel Grating standards:

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E. Japan: JJS

11) Surface treatment: Black, Electrogalvanized (Cold dip galvanized), Hot dipped galvanized, Painted, Powder coated, or as customers’ requirements. And hot dipped galvanizing is generally recommended.

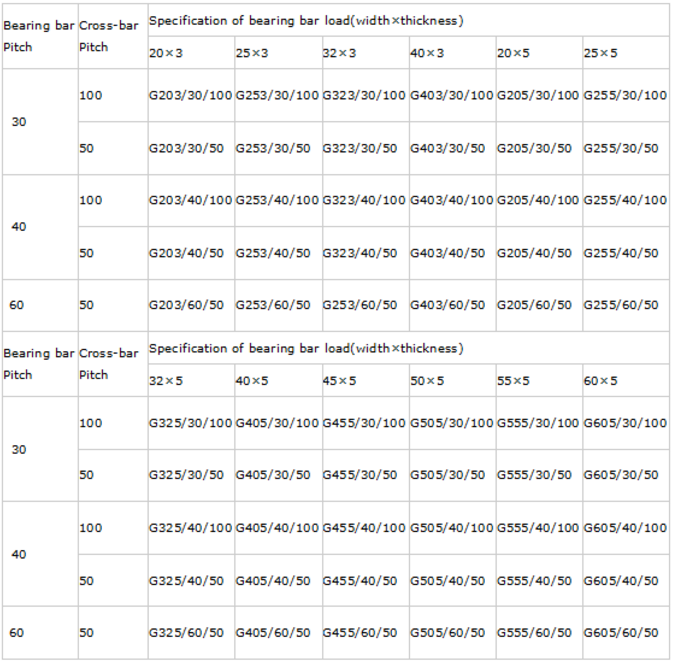

The most popular specifications of Galvanized Serrated Steel Grating:

1) Steel grating with 30mm bearing bar pitch is the most widely used in industrial area. Among the general series, it maintains the strongest resistance to impulsive force.

2) Steel grating with 40mm bearing bar pitch is one of the most economical & lightest types. It should be the best choice to customer on the occasion when the clear span is small.

3) Steel grating with 60mm bearing bar pitch & 50mm cross bar pitch is developed specially for mining industry. As it can avoid the mineral splashing down on board, it’s appointed to use in fabrication plant, transfer terminal & other areas of mining.

Galvanized Serrated Steel Grating Saddle Clip:

Type A saddle clip- composed of a top board with double hooks, a holding down plate with teeth and M8 inner-hexagon-bolt.

Type B saddle clip- composed of a top board with double hooks (one of hooks can draw together the two neighboring steel gratings), and a holding down plate with teeth and a M8 inner-hexagon-bolt.

Type C saddle clip-composed of a top board with double hooks and a M8 hexagon-bolt can be welded in supporting structure

Instruction of Selecting Galvanized Serrated Steel Grating:

1) Light & medium duty                                Maximum recommended spans

2) Heavy duty                                        Maximum recommended spans

Manufacturing of Galvanized Serrated Steel Grating

Material → Welding → Cutting → End plate welding → Surface treatment → Final shipment

Packaging of Galvanized Serrated Steel Grating

Shanghai Metal Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

1) Shanghai Metal Standard

2) Customization

Shanghai Metal provides standard seaworthy packaging to our global customers to avoid damage during the delivery prcess. We can also meet the customers' requirement to pack the goods. In general our product have a wooden pallet and fixed by flat steel strip.

Applications of Galvanized Serrated Steel Grating:

Steel grating can be used in the fields of flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, etc.

Serrated: Better non-skid property & safety compared with plain grating.
