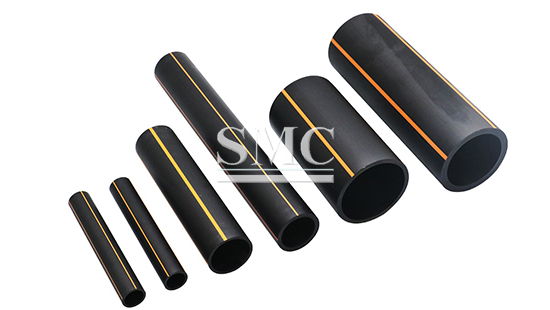

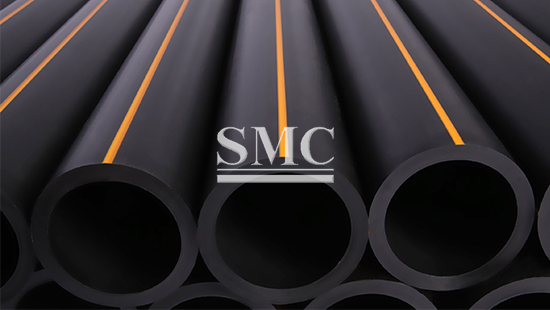

1. PE Gas Pipe

Product Overview:

Material: PE 80 or PE 100

Pressure Rating: PN≤0.3MPa, PN≤0.4MPa, PN≤0.5MPa and PN≤0.7MPa

Size: full 20mm through 450mm availability

Standard: ISO4437

Colors: PE80 Pipe: black with yellow stripes; PE100 Pipe: orange, black with orange stripes, other colors upon request.

Form Supplied: 5.8m or 11.8m meters straight length (DN＞63), 50 or 100 meters coil length (DN20~DN63), Other forms are also available upon request

Advantages:

Corrosion Resistance: resist chemical matters and electron chemical corrosion

Low Flow Resistance: smooth interior walls and low friction

Excellent Flexibility: can be supplied in coil

Easy Installation: light weight and handed friendly

Longevity: can work for more than 50 years under proper use

Various Joint Availability: butt fusion joint, electro fusion joint and transition joint

Recycled and Environment-friendly

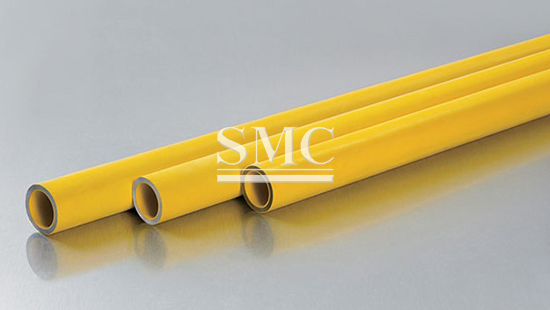

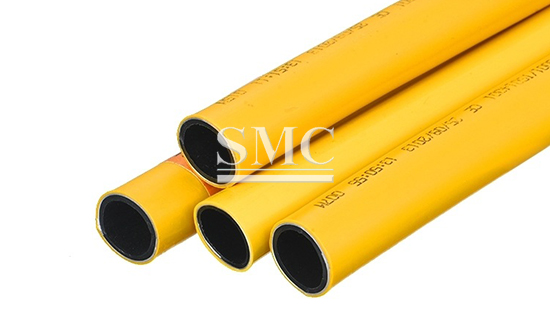

2. Aluminium-plastic Composite Pipe

Product Overview:

Material: Polyethylene and Aluminum

Size: 1014 to 2632

Color: white, orange and yellow

Standard: ASTM F1281、ASTM F 1282、BS 6920

Form Supplied: coil form

Applications: cold water supply, hot water supply and gas supply

Welding Mode: over-lap welding

Advantages:

Low linear expansion coefficient, not easy to deform with the change of temperature

Flexible and can be supplied in coil

Use less fittings compare to conventional plastic & metal pipes

No microorganism growth and hygienic

Non-corrosive

Easy to bend, low weight and fast to install

Joint does not need adhesive

Low transportation cost

Can work for more than 50 years under proper use

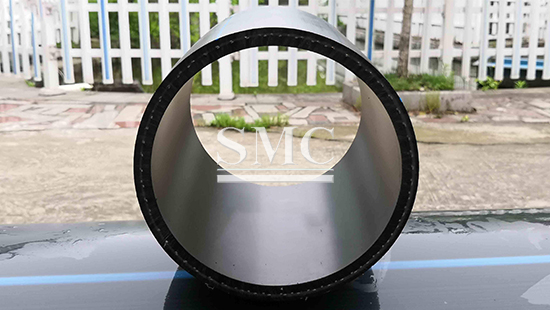

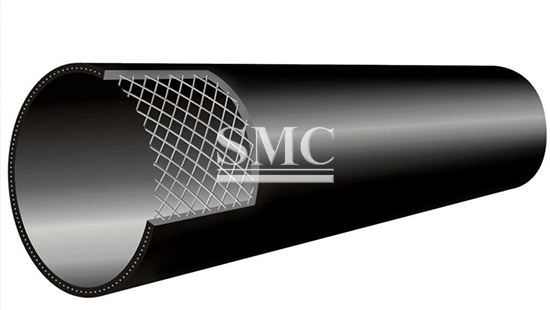

3. Steel mesh frame plastic(HDPE) composite gas pipe

Product Overview:

Steel mesh frame plastic(HDPE) composite gas pipe is a kind of high-strength steel wire left and right spiral wound network skeleton as the reinforcement, high-density polyethylene as the matrix, and the steel wire mesh skeleton and the inner and outer layers of high-density polyethylene are closely connected by a high-performance adhesive resin layer, which has a better composite effect.

Advantages:

It is superior to pure plastic pipe in strength, rigidity and impact resistance, similar to low linear expansion coefficient and creep resistance of steel pipe. It has the same corrosion resistance as pure plastic pipe. It has high temperature and corrosion resistance, and low thermal conductivity;

The utility model has the advantages of high comprehensive cost performance, non-toxic, smooth inner wall and no scaling, and the head loss of the pipeline is 30% lower than that of the steel pipe, which is the best substitute for the steel pipe, the ductile pipe and the pure plastic pipe;

Excellent structure. The reinforced framework of the pipe and the inner and outer plastic are contained into a whole, so there is no worry about the separation of the inner and outer plastic and the reinforcement. Because plastic is a composite of two materials;

The phenomenon of rapid stress cracking which is difficult to overcome by plastic pipe will not occur;

The overall reliability of pipes is high. Under normal conditions, the service life can be up to 50 years
