Construction and Decoration Materials

H Beam, H Section for Building

    Material: Q235B, SS400, A36, ST37-2, S235JR, S275JR Q345B, etc.


    Theoretical Weight: 17.2 - 283kg/m


    Standard: GB/T 11263-1998

Specifications of H beam:

1) Steel material: Q235B, SS400, A36, ST37-2, S235JR, S275JR Q345B, etc.
2) Theoretical Weight: 17.2 - 283kg/m
3) Standard: GB/T 11263-1998
4) Technique: Hot rolled
5) Surface Treatment:
    a) Bared
    b) Black painted (varnish coating)
    c) Galvanized
    d) With oiled-covered

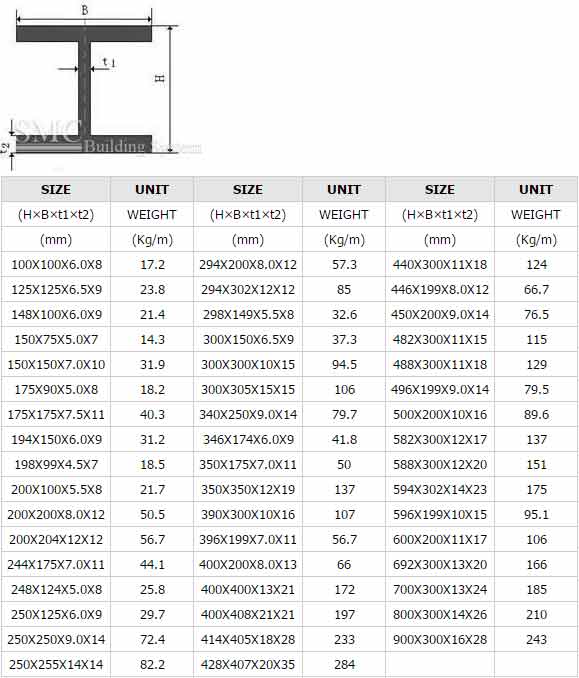

H Beam's Drawing & Size:

Packaging of H beam

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Features and Advantages of H beam:

1) If bear the same press, then the H Beam can save 10%-15% material

2) You can have more designs of the rooms if you use H Beam than concrete

3) The H Beam is light than the concrete, so it is easy to carry and cut the cost

4) The Building will be more stable, if it is built by H Beam, especially the places where earthquake usually happened

5) The H Beam is environmentally friendly and reduce the Nuisance dusts

6) The H Beam can save the real working time, because it is easy to carry and can be used in any weather



Applications of H beam:

1) H Beams can be used in the industry and construction

2) H Beams also can be used in the large Bridge

3) The industries of trains, automobiles and tractors also will use the H Beam

4) Frame Structure in marine and mechanical area
