Hollow Section Steel Tube, SHS, RHS, CHS
Thickness: 2-19mm
Length: 6-12m
Grade: GB, EN, ASTM, JIS
Shanghai Metal Corporation is able to supply the series of cold formed products, such as square steel tube, rectangular steel tube, profiled steel tube etc with galvanized, painted or untreated surface. We also can customize hollow section stee pipe as per client's designation.
-

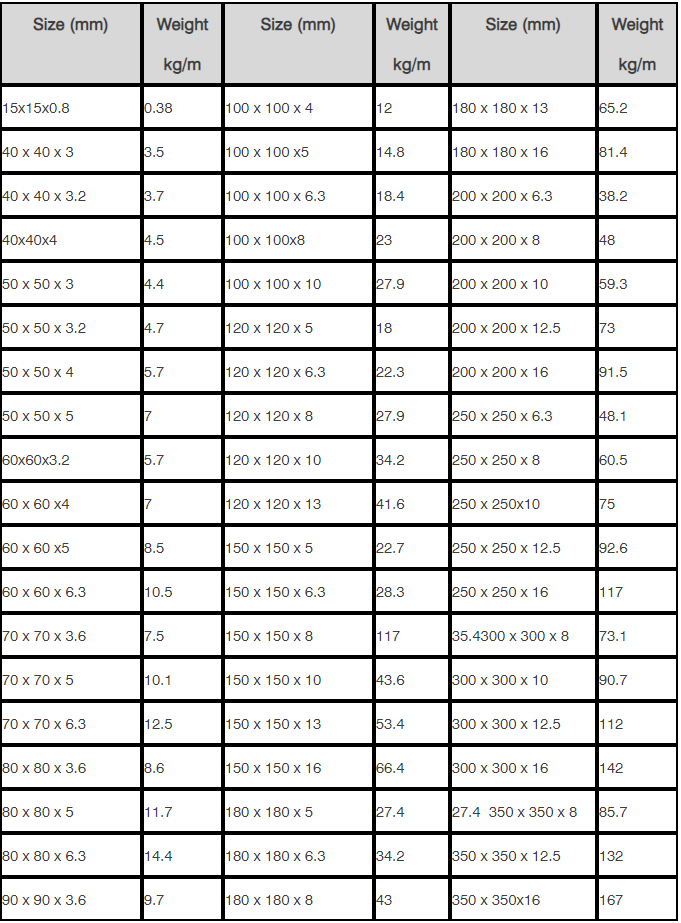

Specifications of Cold Formed Hollow Section - Square Tube, Rectangular Tube and Circular Tube:
1. Type: circular tube, square tube and rectangular tube.
2. Standard and Grade:
GB
6728-2017 Q195, Q235B, Q345B, Q420, Q490 etc
EN 10219 BS 1387
S185,S235,S235JR,S235G2H,S275,S275JR,S355JRH,S355J2H,ST12, ST13,ST14,ST44,ST52
ASTM A500 A 53
Gr,A,Gr B,Gr C,Gr D,DC01,DC03,1008,1010
JIS G 3466
SS330,SS440,SS490,SPHD
-
-
Specifications of RHS- Rectangular Hollow Section:
Size (mm)
Mass per Metre kg/m
Size (mm)
Mass per Metre kg/m
Size (mm)
Mass per Metre kg/m
50 x 25 x 2.5
2.7
100 x50x3
6.7
140 x80x 6.3
20.2
50 x 25 x 2.5
2.7
100 x50x 3.2
7.1
140 x80x8
25.1
50 x 25 x 3
3.2
100 x50x 3.6
8
140 x 80 x 10
30.6
50 x 30 x 2.5
2.9
100 x50x4
8.8
150 x 100 x 4
15.1
50 x 30 x 3
3.4
100 x50x5
10.8
150 x 100 x 5
18.6
50 x 30 x 3.2
3.6
100 x50x6
12.7
150 x 100 x 6
22.1
50 x 30 x 3.6
4
100 x50x 6.3
13.3
150 x 100 x 6.3
23.1
50 x 30 x 4
4.4
100 x50x8
16.3
150 x 100 x 8
28.9
50 x 30 x 5
5.3
100 x 60 x 3
7.2
150 x 100 x 10
35.3
60 x 40 x 2.5
3.7
100 x60x 3.2
7.6
150 x 100 x 12
41.4
60 x 40 x 3
4.4
100 x60x 3.6
8.5
150x100x 12.5
42.8
60 x 40 x 3.2
4.6
100 x 60 x 4
9.4
160 x80x4
14.4
60 x 40 x 3.6
5.1
100 x60x5
11.6
160 x80x5
17.8
60 x 40 x 4
5.6
100 x 60 x 6
13.6
160 x80x6
21.2
60 x 40 x 5
6.9
100 x60x 6.3
14.2
160 x 80 x 6.3
22.2
60 x 40 x 6
8
100 x60x8
17.5
160 x 80 x 8
27.6
60 x 40 x 6.3
8.3
120 x60x 3.6
9.7
160 x 80 x 10
33.7
80 x 40 x 3
5.3
120 x 60 x 4
10.7
160 x 80 x 12
39.5
80x40x 3.2
5.6
120 x 60 x 5
13.1
160 x80x 12.5
40.9
80 x 40 x 3.6
6.3
120 x 60 x 6
15.5
180 x 100 x 4
16.9
80 x 40 x 4
6.9
120 x60x 6.3
16.2
180 x 100 x 5
21
80 x 40 x 5
8.4
120 x 60 x 8
20.1
180 x 100 x 6
24.9
80 x 40 x 6
9.9
120 x 60 x 10
24.6
180 x 100 x 6.3
26.1
80 x 40 x 6.3
10.3
120 x80x 3.6
10.8
180 x 100 x 8
32.6
80 x 40 x 8
12.5
120 x80x4
11.9
180 x 100 x 10
40
90 x 50 x 3
6.2
120 x80x5
14.7
180 x 100 x 12
47
90 x 50 x 3.2
6.6
120 x80x6
17.4
180x100x 12.5
48.7
90 x 50 x 3.6
7.4
120 x80x 6.3
18.2
200 x 100 x 4
18.1
90 x 50 x 4
8.2
120 x80x8
22.6
200 x 100 x 5
22.6
90 x 50 x 5
10
120 x 80 x 10
27.4
200 x 100 x 6
26.8
90 x 50 x 6
11.8
140 x80x4
13.2
200 x 100 x 6.3
28.1
90 x 50 x 6.3
12.3
140 x 80 x 5
16.3
200 x 100 x 8
35.1
90 x 50 x 8
15
140 x 80 x 6
19.3
200 x 100 x 10
43.1
200 x 100 x 12
50.8
260x180x 12.5
80.1
500 x 300 x 8
97.9
200x100x 12.5
52.7
260 x 180 x 16
100
500 x 300 x 10
122
200 x 100 x 16
65.2
300 x 200 x 5
38.3
500 x 300 x 12
145
200 x 120 x 6
28.7
300 x 200 x 6
45.7
500x300x 12.5
151
200 x 120 x 6.3
29.9
300 x 200 x 6.3
47.9
500 x 300 x 16
191
200 x 120 x 8
37.3
300 x 200 x 8
60.3
500 x 300 x 20
235
200 x 120 x 10
45.9
300 x 200 x 10
74.5
350 x 250 x 6.3
57.8
200 x 120 x 12
54.5
300 x 200 x 12
88.5
350 x 250 x 8
72.8
200x120x 12.5
55.7
300x200x 12.5
91.9
350 x 250 x 10
90.2
250 x 150 x 5
30.4
300 x 200 x 16
115
350 x 250 X 12
107
250 x 150 x 6
36.2
350 x 250 x 6
55.1
350x250x 12.5
112
250 x 150 x 6.3
38
350 x 250 x 6.3
57.8
350 x 250 x 16
141
250 x 150 x 8
47.7
350 x 250 x 8
72.8
400 x 200 x 6
55.1
250 x 150 x 10
58.8
350 x 250 x 10
90.2
400 x 200 x 6.3
57.8
250 x 150 x 12
69.6
350 x 250 x 12
107
400 x 200 x 8
72.8
250 x 150 x 12.5
72.3
350 x250 x 12.5
112
400x200x 12.5
112
250 x 150 x 16
90.3
350 x 250 x 16
141
400 x 200 x 16
141
260 x 180 x 6
40
400 x 200 x 6
55.1
450 x 250 x 8
85.4
260 x 180 x 6.3
41.9
400 x 200 x 6.3
57.8
450 x 250 x 10
106
260 x 180 x 8
52.7
400 x 200 x 8
72.8
450 x 250 x 12
126
260 x 180 x 10
65.1
400 x 200 x 10
90.2
450x250x 12.5
131
260 x 180 x 12
77.2
400 x 200 x 12
107
450 x 250 x 16
166
90 x 50 x 3.2
6.6
120 x80x6
17.4
180x100x 12.5
48.7
90 x 50 x 3.6
7.4
120 x80x 6.3
18.2
200 x 100 x 4
18.1
90 x 50 x 4
8.2
120 x80x8
22.6
200 x 100 x 5
22.6
90 x 50 x 5
10
120 x 80 x 10
27.4
200 x 100 x 6
26.8
90 x 50 x 6
11.8
140 x80x4
13.2
200 x 100 x 6.3
28.1
90 x 50 x 6.3
12.3
140 x 80 x 5
16.3
200 x 100 x 8
35.1
90 x 50 x 8
15
140 x 80 x 6
19.3
200 x 100 x 10
43.1
200 x 100 x 12
50.8
260x180x 12.5
80.1
500 x 300 x 8
97.9
200x100x 12.5
52.7
260 x 180 x 16
100
500 x 300 x 10
122
200 x 100 x 16
65.2
300 x 200 x 5
38.3
500 x 300 x 12
145
200 x 120 x 6
28.7
300 x 200 x 6
45.7
500x300x 12.5
151
200 x 120 x 6.3
29.9
300 x 200 x 6.3
47.9
500 x 300 x 16
191
200 x 120 x 8
37.3
300 x 200 x 8
60.3
500 x 300 x 20
235
200 x 120 x 10
45.9
300 x 200 x 10
74.5
350 x 250 x 6.3
57.8
200 x 120 x 12
54.5
300 x 200 x 12
88.5
350 x 250 x 8
72.8
200x120x 12.5
55.7
300x200x 12.5
91.9
350 x 250 x 10
90.2
250 x 150 x 5
30.4
300 x 200 x 16
115
350 x 250 X 12
107
250 x 150 x 6
36.2
350 x 250 x 6
55.1
350x250x 12.5
112
250 x 150 x 6.3
38
350 x 250 x 6.3
57.8
350 x 250 x 16
141
250 x 150 x 8
47.7
350 x 250 x 8
72.8
400 x 200 x 6
55.1
250 x 150 x 10
58.8
350 x 250 x 10
90.2
400 x 200 x 6.3
57.8
250 x 150 x 12
69.6
350 x 250 x 12
107
400 x 200 x 8
72.8
250 x 150 x 12.5
72.3
350 x250 x 12.5
112
400x200x 12.5
112
250 x 150 x 16
90.3
350 x 250 x 16
141
400 x 200 x 16
141
260 x 180 x 6
40
400 x 200 x 6
55.1
450 x 250 x 8
85.4
Manufacturing of Cold Formed Hollow Section Square Tube and Rectangular Tube:
Decoilding-Flatting-Shearing and butt welding-Circle shearing-Loop storing-Water cooling-removal of burrs-High frequency welding-Roll forming-Forming-Nondestructive inspection-Cutting off-Corrosion resistant coating-Packing and warehousing-Marking-Inspection

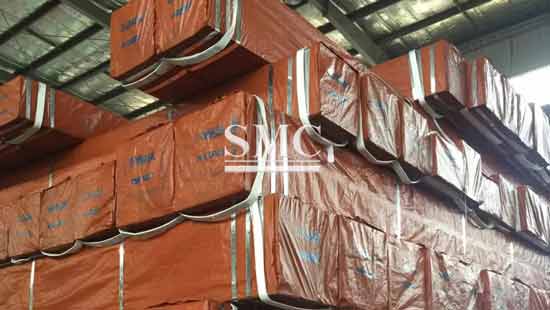

Packaging of Hollow Section Steel Tube:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Features:
- Excellent equipment
- Capacity of producing high accurate
- Heat treatment technical equipment
- Strict quality management
- Strong technology and development
Main Applications:
- Tower foundation
- Tower crane - Container frame
- Expressway safety guard
- Steel construction - Machinery
- Agricultural canopy
- Greenhouses
