Size: 150*150*300/150*150*100/100*100*100, etc.

Hole count: 25x25,40x40, 43x43, 50x50, 60x60, etc.

Color: white, yellow.

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a leading Honeycomb Ceramic manufacturer and supplier.

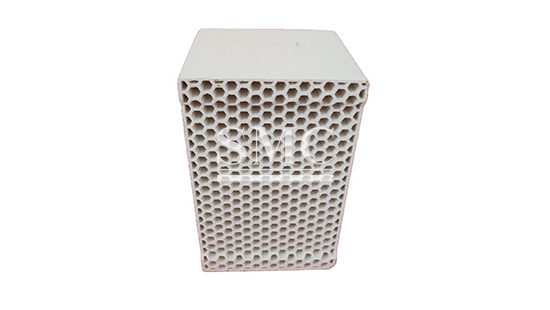

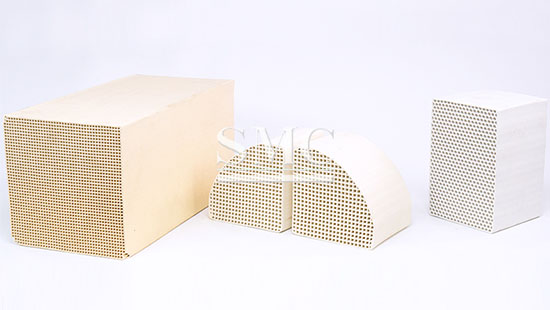

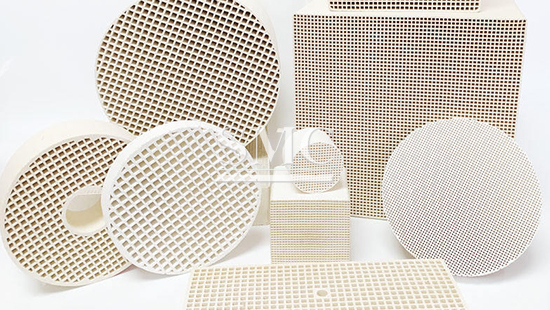

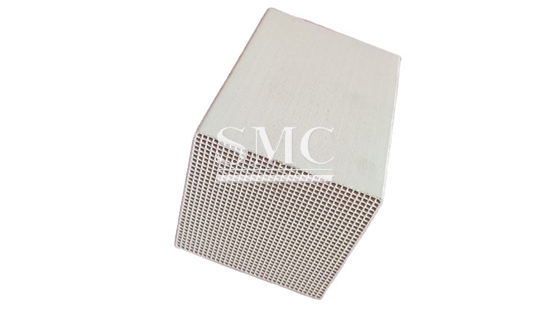

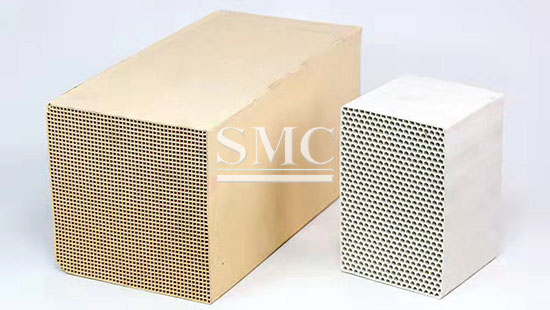

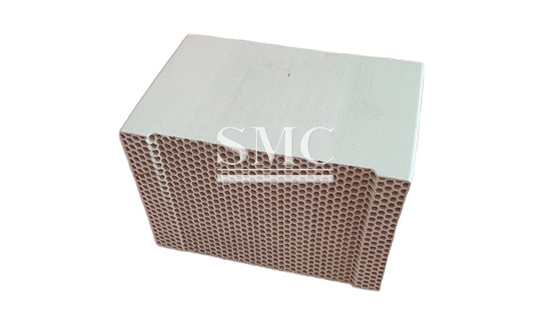

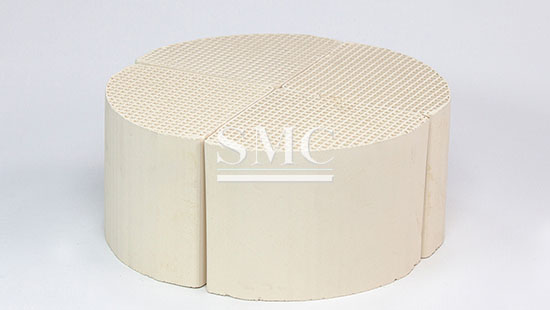

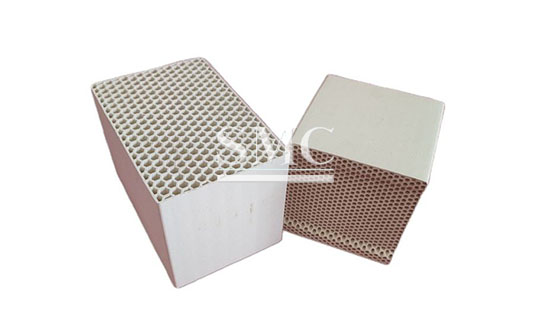

The honeycomb ceramic regenerator, also known as ceramic regenerator and ceramic honeycomb, is a key components of regenerative burner. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other. This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel. It is widely used in steel, machinery, building materials, petrochemical, non-ferrous metal smelting and other industries thermal equipment.

If you want to know more about our Honeycomb Ceramic price or other honeycomb panel price please feel free to contact us, we will reply you within 24 hours.

1. Size: 100x100x100, 100x150x150, 150x150x150, 150x150x300mm, etc.
2. Hole count: 25x25, 40x40, 43x43, 50x50, 60x60 , etc.
3. Color: white, yellow.

1.Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as.
2.Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of calorific value fuel and reduce the emissions from low calorific value coal gas.
3.Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down on reinvesting in equipment.
4.Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.

Honeycomb ceramic is the key and core component of heat storage high temperature combustion technology (HTAC technology). It has been widely used in various push-steel heating furnaces, walking heating furnaces, heat treatment furnaces, forging furnaces, melting furnaces, ladle/tundish roasters, soaking furnaces, radiant tube burners, and bell-type furnaces in the metallurgical machinery industry. Furnace, blast furnace hot air furnace; various ceramic furnaces and various glass furnaces in the building materials industry; various tubular heating furnaces, cracking furnaces and other industrial furnaces in the petrochemical industry.

Dimension
Dimension	Cells	Cell Density	Channel Width（mm）	Inner wall Thickness	Free Cross Section
(mm)	（N×N）	（CPSI）	Channel Width（mm）	（mm）	(%)
150×150×300	20×20	11	6	1.35	64
150×150×300	25×25	18	4.9	1	67
150×150×300	32×32	33	3.7	0.9	63
150×150×300	40×40	46	3	0.7	64
150×150×300	43×43	50	2.8	0.65	64
150×150×300	50×50	72	2.4	0.6	61
150×150×300	59×59	100	2.1	0.43	68


Chemical Composition
Item	Cordierite	Mullite	Alumina Porcelain	High Alumina Porcelain	Corundum
Al₂O₃	33	65	54	67	72
SiO₂	58	30	39	23	22
MgO	7.5	<1	3.3	1.7	<1
Others	1.5	14	3.7	8.3	5


Physical Properties
Item		Cordierite	Mullite	Alumina Porcelain	High Alumina Porcelain	Corundum
Item		(Porous)	Mullite	Alumina Porcelain	High Alumina Porcelain	Corundum
Density(g/cm3)		1.8	2	1.9	2.2	2.5
Water Absorption (%)		23	18	20	13	12
Coefficient of Thermal Expansion(×10-6K-1) (20～800℃)		≤3.0	≤6.0	≤6.3	≤6.0	≤8.0
Specific Heat (J/Kg.K) (20～1000℃)		750-900	1100-1300	850-1100	1000-1300	1300-1400
Thermal Conductivity		1.3-1.5	1.5-2.3	1.0-2.0	1.5-2.3	5～10
(W/m.k) (20～1000℃)		1.3-1.5	1.5-2.3	1.0-2.0	1.5-2.3	5～10
Max. Working Temp.(℃)		1200	1400	1300	1400	1650
Axial crushing strength (MPa)	Dry	≥11	≥20	≥11	≥22	≥25
Axial crushing strength (MPa)	Immersion	≥2.5	≥2.5	≥2.5	≥2.5	≥2.5

Packaging of Honeycomb Ceramic

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Characteristics

The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it’s used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.

Materials: Aluminum，Aluminum titanate, Dense Aluminum，Cordierite，Dense Cordierite，Mullite，Corundum Mullite, Activated carbon, Silicon carbide and others
