Thickness: 0.6mm - 1.6mm
Width: 600mm - 1500mm
Zinc coating weight: g60, g90
Specifications of Insulated Galvanized Steel:
1) Grade: SGCC, DX51D, Q195, all according to the customer's request
2) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, etc.
3) Thickness: 0.6mm - 1.6mm, all available
4) Width: 600mm - 1500mm, all available
5) Gauge Size: 18, 20, 22, 24, 26
6) Zinc coating weight: g60, g90
Different Types of Galvanized Steel Sheet:
We are able to make galvanized sheet to further processsing, such as embossed sheet metal, checker steel sheet, perforated steel metal, corrugated roof sheet, and prepainted galvanized steel sheet. We provide various patterns for those different types. Please check the metal sheet types's table below. All of our metal sheet types are custom-manfactureed.
SMC Standard Sheet Metal Gauge:
hexagonal gabion wire netting with lowest price
Wire diameter:0.5mm-4.0mm
Aperture: 1/2”, 3/4", 5/8",1", 11/2",2",60*80,80*100,80*120,100*150,120*150,etc
Zinc coated:30-200g/m2 ISO9001
Material:low carbon steel wire, steel wire,galvanized iron or pvc coated wire.
Weave:twist,z-twist,two-way rub twist,first weave after plating,first plating after weave,divided hot dip galvanized,electro-galvanized,PVC coated etc.

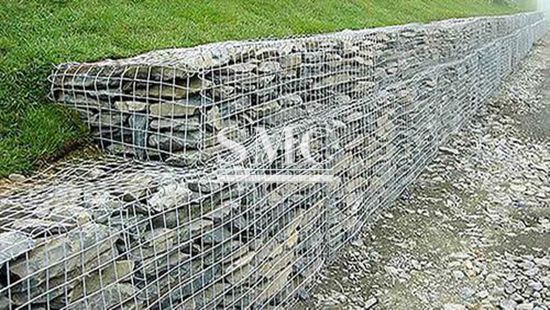

Application: Gabion wire mesh fence /gabion box/gabion wall/gabion barket/
Hexagonal wire netting is used for feeding chicken, ducks, gooses, rabbits and the fence of zoo. Also used in machinery protection, fences for road, railway, etc. It can be made into box to hold stones and sand to protect the bank, hillside, bridge and other related civil engineering against the flood.
Self-furred zinc coated galvanized steel woven stucco netting is designed for use as
reinforcement for cement wall systems. Our 1" (25.4mm) hexagonal mesh is formed with a
reverse twist of 20 gauge (0.89mm) galvanized steel wire. 1" 20 stucco netting is furred at
3 inches (76mm) and 6 inches (152mm) on center horizontally and vertically, respectively.
Gabion wire mesh fence /gabion box/gabion wall/gabion barket/
Hexagonal woven wire netting is specially for exterior wall coatings, can be supplied with
paperback or not.
Paperback Netting for Stucco:
1 1/2" x 17 gauge, zinc coated, galvanized woven wire Paperback Stucco Netting is made for
building as reinforcement wire materials for cement, gypsum plaster, masonry veneer and
ceramic tile. 1 1/2" (38mm) x 17 gauge, 1/4" self-furring woven wire in rolls, hexagonal
mesh is formed with a twist of 17 gauge (1.38mm) galvanized steel wire. Paperback Stucco
Netting is furred at 6" (152mm) vertically.
Architectural stucco netting and reinforcing wire building product are available in various
sizes and materials.
Varieties:
Non-furr Stucco Netting
Paperback Netting, Galvanized Woven in Rolls
Paperback Stucco Netting
Woven 17 gauge /Building Paper Backing
Self-furred Stucco Netting
Stucco Netting 17G, Galvanized Woven
Stucco Netting 20G, Glvanized Woven
Packaging of Insulated Galvanized Steel
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
Applications of Insulated Galvanized Steel:
Due to its superior quality and longevity, Insulated Galvanized Steel be used in the following building and architectural applications.
1) Roofs
2) Roll formed panels (industrial of commercial buildings)
3) Cladding on standard building materials
What is Galvanized Steel?
There are two typical galvanizing ways to obtain a zinc coating: hot dip galvanizing and electrogalvanizing. Hot dip galvanizing is the process that steel is immersed into molten zinc bath to get a zinc coating surface. This not only helps protect steel from rust and corrosion, but also gives the steel a shiny attractive appearance. Electrogalvanizing is the process that uses electrolysis to coat the steel with zinc, which is neither cost-effective nor environmentally friendly. It is hardly to find electrogalvanized steel in our lives nowadays.
What are the advantages of Galvanized Steel?
Because of permanently and successive zinc/iron alloy layers, galvanized steel offers many benefits:
1) Corrosion Resistance: the zinc coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.
2) Excellent Surface Appearance
3) Formability: it can be simply bend to parts with deep drawing requirements
4) Paintability: it can be painted with different colors
5 )Weldability: it is accepted various welding practices
What are the disadvantages of Galvanized Steel?
In spite of many benefits, galvanized steel is not always an ideal choice. Galvanized steel cannot be used underground without being properly covered, which can be inconvenient for many jobs.
Where do we use Galvanized Steel?
It is primarily used in the construction industry, such as roofing, wall cladding, and support beams. It is also used in the automotive industry, due to its enhanced paintability, weldability and corrosion resistance. Moreover, it is an essential material for white goods application, such as refrigerators, air-conditioners, washers, microwaves, vending machines and audio visual systems.
