Grade: SCu6810(AWS BRCuZn-C)
Melting Point: 865-890℃
Diameter: 1.0mm-5.0mm
Weight: 10kg-12.5kg

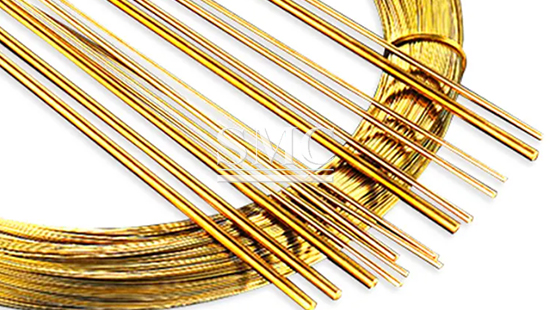

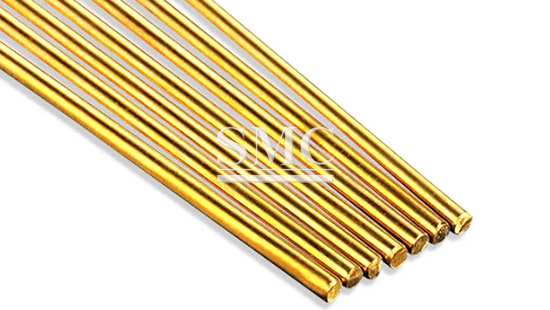

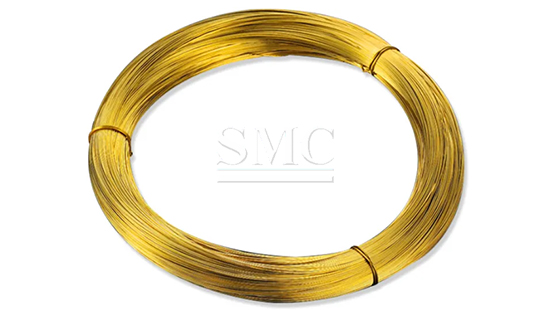

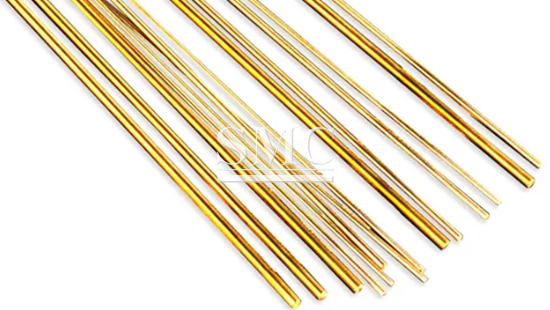

Shanghai Metal Corporation is manufacturer and supplier of iron brass welding wire.
Containing a small amount of iron, tin, silicon, manganese and other elements, this special brass welding wire has good fluidity, can effectively control the evaporation of zinc, eliminate porosity, so as to achieve a good weld. Iron brass welding wire can be used as brass, copper gas welding is the filler material, but also widely used in brazing steel, nickel and nickel-based alloys and hard alloys. In addition to vacuum brazing, all brazing methods can use this brazing material.
If you have demand of iron brass welding wire, please feel free to contact with us, we will reply you within 24hours.
Technical Information:
Chemical Composition
Cu |
Sn |
Fe |
Si |
Mn |
Zn |
57.0-59.0 |
0.7-1.1 |
0.35-1.2 |
0.05-0.15 |
0.03-0.09 |
Remains |
Physical property
Weight |
Melting Point |
Thermal Conductivity |
Conductivity(elec.) |
|
8.4 |
865-890 |
120 |
23-26 |
Mechanical properties of molten metal
Tensile Strength |
Elongation |
Brinell Hardness |
|
400 |
25 |
100 |
