Machinery and Equipment Spare Parts & Accessories

Nut For Machinery And Equipment Spare Parts

    Minimum Order Quantity: 50,000 pieces



    FOB Price: USD 20-50 per thousand pieces



    Nut  Type: Hex Nut, Square Nut, Flange Nut, Cap Nut, etc.



    Standards: DIN, BS, ISO, IFI, and other standards or non-standards, etc.

Specifications of Nut:
1) Materials that we can produce:
   Carbon Steel, Stainless Steel, Copper and Alloy Steel
2) Standards: DIN,BS, ISO, IFI, and other standards or non-standards, etc.
3) Types: Hex Nut, Square Nut, Flange Nut and Cap Nut
4) Features: Tight, secure, adequate strength
5) Applications: Structural, machinery and automotive applications

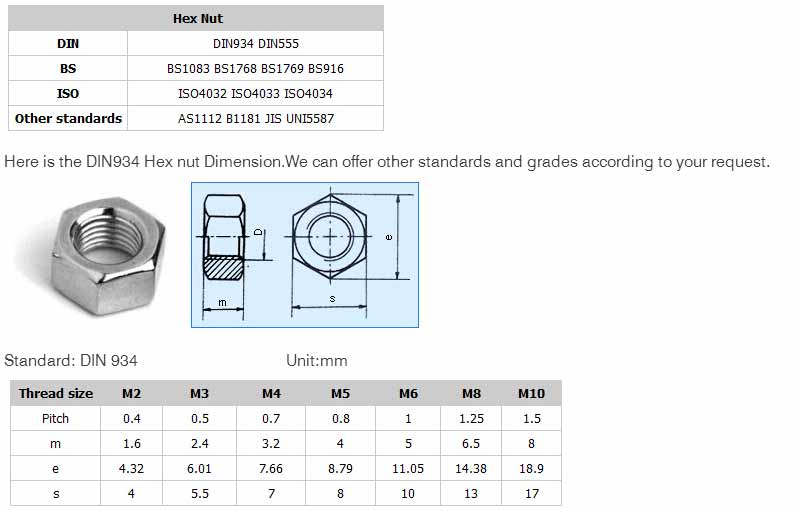

Standard & Grade of Hex Nut:

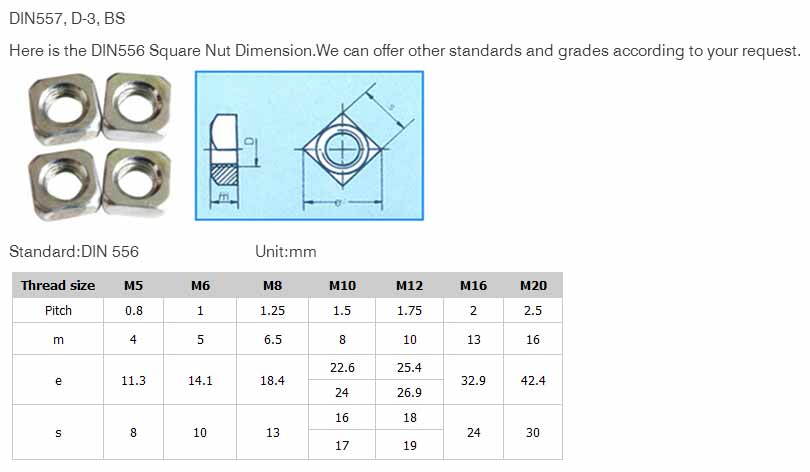

Standard & Grade of Square Nut:

Standard & Grade of Flange Nut:

DIN6923, IFI D-21

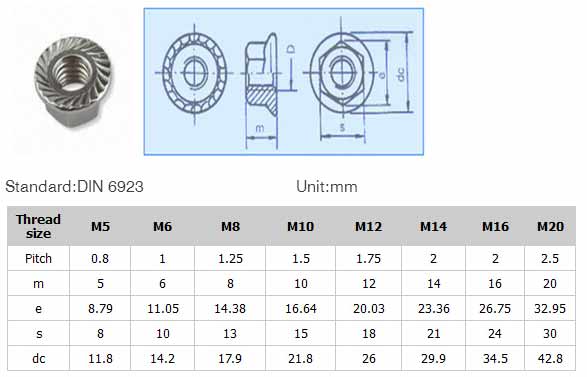

Here is the DIN6923 Flange Nut Dimension. We can offer other standards and grades according to your request.

Standard & Grade of Cap Nut:

DIN917, DIN986, DIN1587

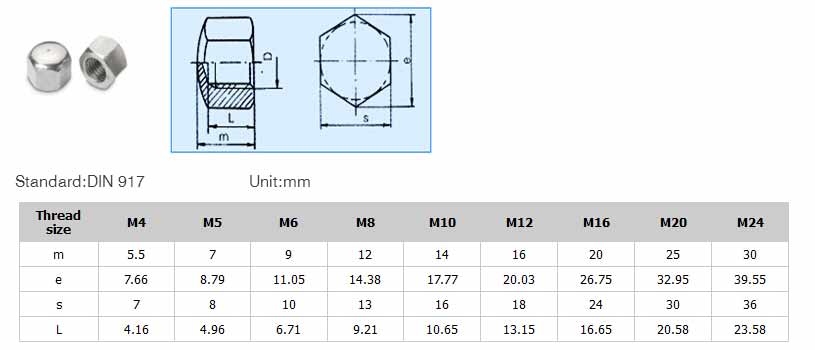

Here is the DIN917 Cap Nut Dimension. We can offer other standards and grades according to your request.

Packaging of Nut

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



All nut threads are packed by the packaging box (dimension:260mm x 260mm x 140mm). If you have any further questions, please feel free to contact us.

Tips for choosing Nut:

*Make sure that you use a nut designed with greater strength than the bolt. Because a weaker nut and stronger bolt results in fastener failure.

*Always choose a nut finished to match the bolt. For example, hot dip galvanized hex bolts need to be joined with hot dip galvanized nuts, and correspondingly, with hot dip galvanized washers.
