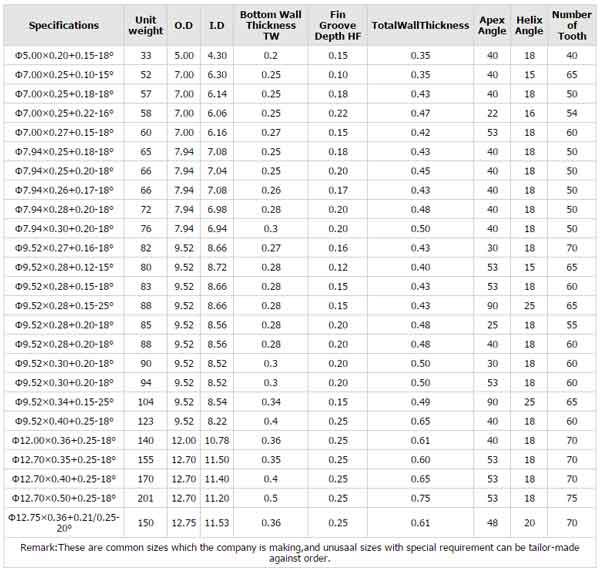

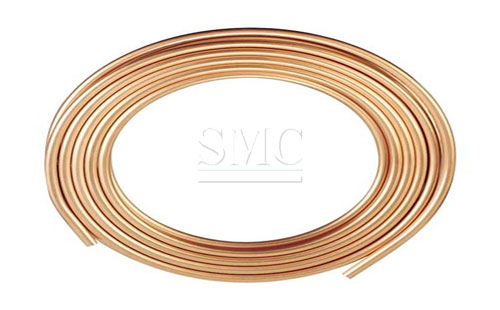

Specifications of Precision Copper Tube for Heat Exchanger Pipe:
1) Grade: C10200, C12200, C2680, C27200, C27000, etc.
2) Outside diameter: 1.6mm - 5mm
3) Thickness: 0.27mm - 2.0mm
4) Coil weight: 5kg/20kg/30kg/50kg
5) Process Method: cold drawn and cold rolled
6) Surface: pickled or sand blasting

Features of Precision Copper Tube:
1) Small external diameter
2) High precision
3) Smooth internal and external surface

Inspection for Precision Copper Tube:

1) Chemical Analysis

2) Component Analysis

3) Spectroscopic Analysis

4) Physical Property Inspection

5) Eddy Current Inspection

6) Ultrasonic Inspection

Mill Test Certificate is supplied with shipment

Third Part Inspection is acceptable

Manufacturing of Precision Copper Tube

Packaging of Precision Copper Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Packing:

1) Seaworthy package

2) With plastic cap to protect both ends

3) Plastic bag wrapped outside the pipe

4) Bundles to be covered by polythene & strapped securely

5) If require, pack with wooden box

Applications of Precision Copper Tube:

1) Air conditioner and refrigerator

2) Water tube service and distribution

3) Fire protection, solar, fuel/fuel Oil

4) Natural gas, liquefied petroleum (LP) gas

5) HVAC, snow melting, drain, waste, vent piping

6) Heat exchange
