Material:PVC-U / UPVC
Specification:75mm-160mm
Length:4m or as required
Application: Used for drainage system
Shanghai Metal Corporation is a leading PVC-U Inner Wall Spiral Silencing Pipe manufacturer and supplier.

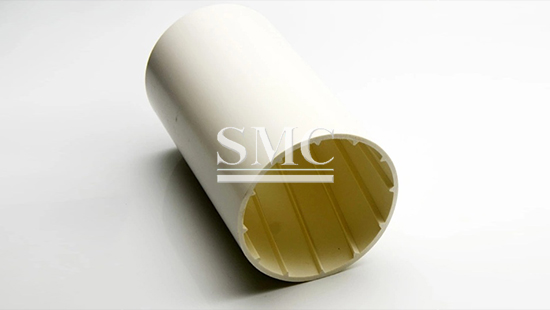

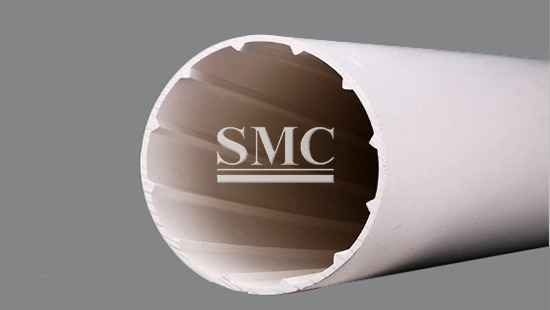

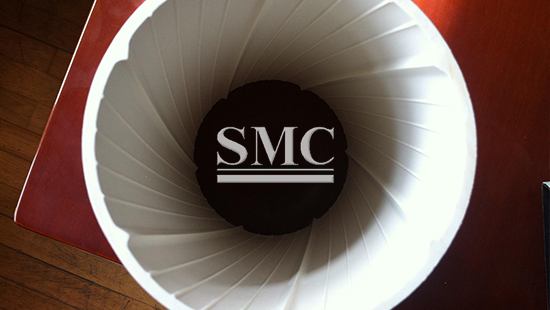

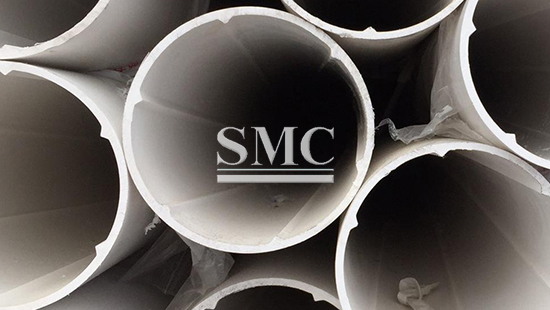

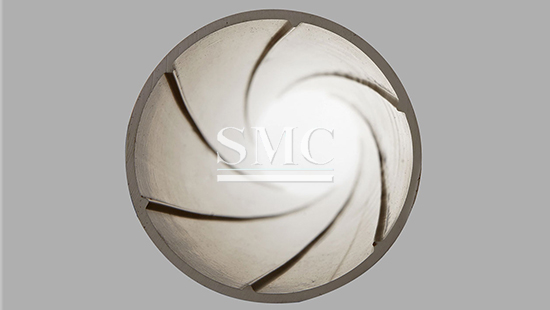

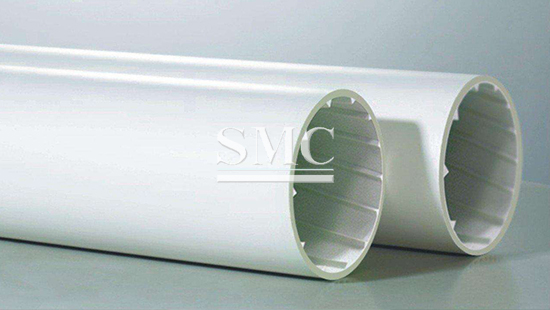

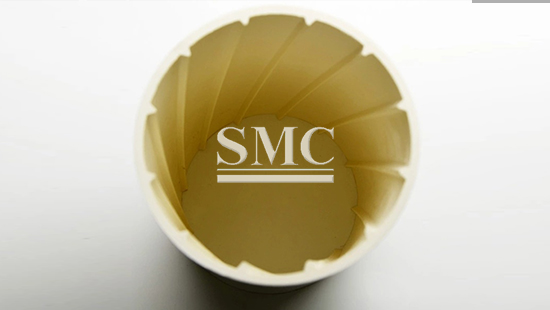

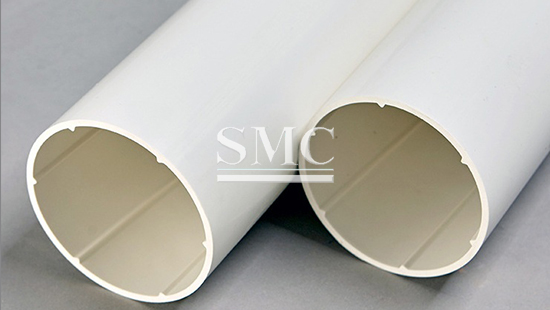

PVC-U Inner Wall Spiral Silencing Pipe is mainly made of polyethylene resin, added with necessary additives, and extruded by kneading. The unique inner spiral structure of the product reduces the drainage noise a lot. If the inner spiral pipe is used together with the hydrophilic inner wall PVC-U cyclone noise reducer, the drainage noise can be reduced by 5db-18db, which is better than cast iron pipe and ordinary PVC drainage pipe, which is beneficial to the physical and mental health of users. At the same time, PVC-U Inner Wall Spiral Silencing Pipe also has excellent physical and mechanical properties.
If you want to know more about our plastic piping system or PVC-U Inner Wall Spiral Silencing Pipe price please feel free to contact us, we will reply you within 24 hours.
Technical Information of PVC-U Inner Wall Spiral Silencing Pipe:
Specification of PVC-U Inner Wall Spiral Silencing Pipe |
||||
Size/mm |
75x2.3 |
110x3.2 |
125x3.2 |
160x4.0 |
Outside Diameter/mm |
75 |
110 |
125 |
160 |
Wall Thickness/mm |
2.3 |
3.2 |
3.2 |
4.0 |
Height of large thread/mm |
1.5 |
1.7 |
1.7 |
1.8 |
Height of small thread/mm |
0.5 |
0.7 |
0.7 |
0.8 |
Length/mm |
4000 |
4000 |
4000 |
4000 |
SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
