Steel Wire & Steel Cable

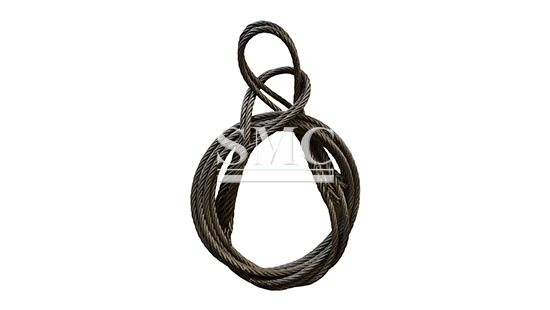

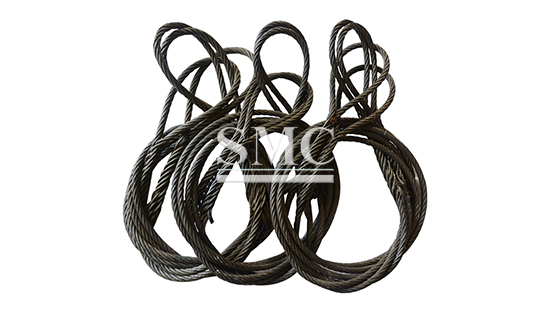

Spliced Steel Wire Rope Sling

Diameter: 6mm~120mm

Structure: 6 * 37+FC/ IWRC, 8 * 61+FC/ IWRC

Material: Galvanized steel, Stainless steel

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is experienced manufacturer of spliced steel wire rope sling in China since 1980s.

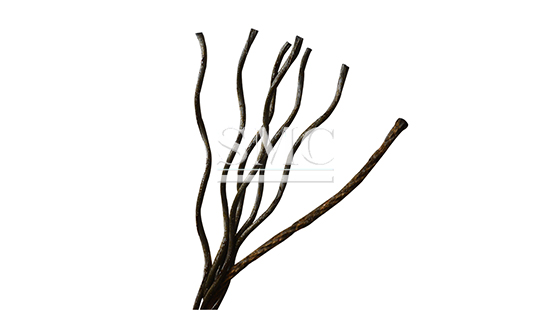

This product uses manually spliced six strand steel wire ropes with alternating twisted fiber rope cores or steel wire rope cores to create a steel wire rope connection device (commonly known as a hook head) with a collar. After five insertions, it is made into a plug-in joint, which can be composed of three whole strand insertions and two reduced strand insertions. All connectors should be laid in the opposite direction to the wire rope; Except for the first group of interpenetration, the tail ends of all rope strands interpenetrated in other groups should be opposite to the twisting direction of the steel wire rope.

If you want to know more about spliced steel wire rope sling price, please feel free to contact us, we will reply you within 24 hours.

Diameter: 6mm ~ 120mm

Structure: 6 * 37+FC/ IWRC, 8 * 61+FC/ IWRC

Material: Galvanized steel, Stainless steel

Core: FC & IWRC

Tensile strength: 1670Mpa, 1770Mpa

Standard: GB/16761-2009

1. Pressed steel wire rope sling (fiber core FC)

2. Pressed steel wire rope sling (steel core IWRC)

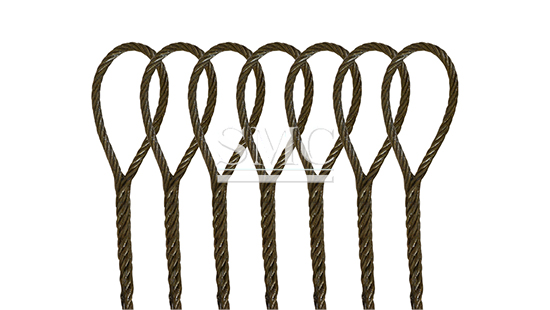

3. Splicing steel wire rope sling (fiber core FC)

4. Splicing steel wire rope sling (steel core IWRC)

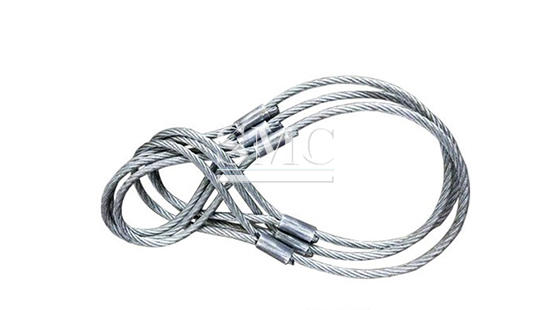

5. Pressed steel cable and steel wire rope sling

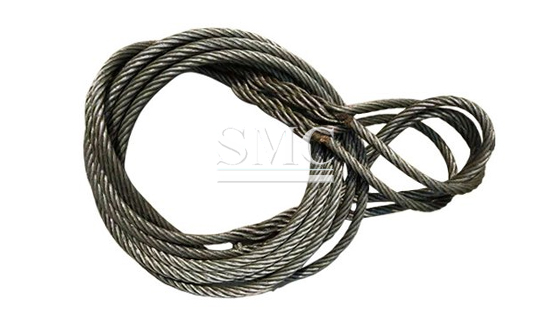

6. Splicing steel wire rope and steel wire rope sling

7. Endless loop (fiber core FC)

8. Endless loop (steel core IWRC)

1. Lifting

2. Marine

3. Construction

4. Railways

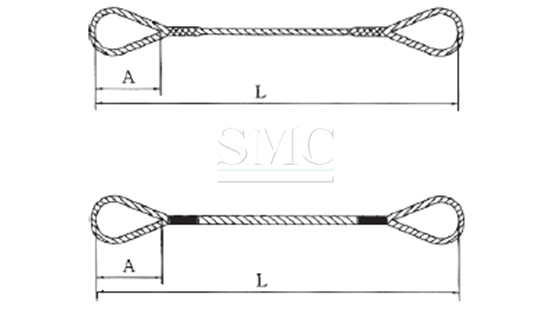

Technical Information of Spliced Steel Wire Rope Sling:

Sizes&Types				Diameter	Size(mm)				Breaking load
Standard		Ring type with sleeve		mm	Standard		Ring type with sleeve		KN
FC	IWRC	FC	IWRC	D	A	B	A	B	FC	IWRC
WFC06	WRC06	WFF06	WRR06	6	90	180	15	27	2.7	2.9
WFC07	WRC07	WFF07	WRR07	7	95	190	20	36	3.6	3.9
WFC08	WRC08	WFF08	WRR08	8	105	210	20	36	4.7	5.1
WFC09	WRC09	WFF09	WRR09	9	115	230	25	45	6	6.5
WFC10	WRC10	WFF10	WRR10	10	115	230	25	45	7.4	8
WFC11	WRC11	WFF11	WRR11	11	125	250	30	54	8.9	9.7
WFC12	WRC12	WFF12	WRR12	12	130	260	30	54	11	11.5
WFC13	WRC13	WFF13	WRR13	13	130	260	35	63	12	14
WFC14	WRC14	WFF14	WRR14	14	140	280	35	63	14	16
WFC16	WRC16	WFF16	WRR16	16	160	320	40	72	19	20
WFC18	WRC18	WFF18	WRR18	18	180	360	45	81	24	26
WFC20	WRC20	WFF20	WRR20	20	200	400	50	90	30	32
WFC22	WRC22	WFF22	WRR22	22	220	440	55	99	36	39
WFC24	WRC24	WFF24	WRR24	24	240	480	60	108	42	46
WFC26	WRC26	WFF26	WRR26	26	260	520	65	117	50	54
WFC28	WRC28	WFF28	WRR28	28	280	560	70	126	58	63
WFC30	WRC30	WFF30	WRR30	30	300	600	80	144	66	72
WFC32	WRC32	WFF32	WRR32	32	320	640	80	144	76	82
WFC34	WRC34	WFF34	WRR34	34	340	680	90	162	85	92
WFC36	WRC36	WFF36	WRR36	36	360	720	90	162	96	104
WFC38	WRC38	WFF38	WRR38	38	380	760	100	180	106	115
WFC40	WRC40	WFF40	WRR40	40	400	800	100	180	118	128
WFC42	WRC42	WFF42	WRR42	42	420	840	110	198	130	141
WFC44	WRC44	WFF44	WRR44	44	440	880	110	198	143	155
WFC46	WRC46	WFF46	WRR46	46	460	920	120	216	156	169
WFC48	WRC48	WFF48	WRR48	48	480	960	120	216	170	183
WFC50	WRC50	WFF50	WRR50	50	500	1000	130	234	185	200
WFC52	WRC52	WFF52	WRR52	52	520	1040	130	234	200	216
WFC54	WRC54	WFF54	WRR54	54	540	1080	140	252	215	233
WFC56	WRC56	WFF56	WRR56	56	560	1120	140	252	231	251
WFC58	WRC58	WFF58	WRR58	58	580	1160	150	270	248	269
WFC60	WRC60	WFF60	WRR60	60	600	1200	150	270	266	287
WFC62	WRC62	--	--	62	620	1240			241	286
WFC64	WRC64	--	--	64	640	1280			257	304
WFC66	WRC66	--	--	66	660	1320			274	324
WFC68	WRC68	--	--	68	680	1360			291	344
WFC70	WRC70	--	--	70	700	1400			308	365
WFC72	WRC72	--	--	72	720	1440			326	386
WFC74	WRC74	--	--	74	740	1480			344	407
WFC76	WRC76	--	--	76	760	1520			363	430
WFC78	WRC78	--	--	78	780	1560			383	453
WFC80	WRC80	--	--	80	800	1600			402	476
WFC82	WRC82	--	--	82	820	1640			423	500
WFC84	WRC84	--	--	84	840	1680			444	525
WFC86	WRC86	--	--	86	860	1720			465	550
WFC88	WRC88	--	--	88	880	1760			487	576
WFC90	WRC90	--	--	90	900	1800			509	603
WFC92	WRC92	--	--	92	920	1840			532	630
WFC94	WRC94	--	--	94	940	1880			556	657
WFC96	WRC96	--	--	96	960	1920			579	686
WFC98	WRC98	--	--	98	980	1960			604	714
WFC100	WRC100	--	--	100	1000	2000			629	744
WFC102	WRC102	--	--	102	1020	2040			654	774
WFC104	WRC104	--	--	104	1040	2080			680	805
WFC106	WRC106	--	--	106	1060	2120			707	836
WFC108	WRC108	--	--	108	1080	2160			733	868

Packaging of Spliced Steel Wire Rope Sling:

Cautions :

a) If it is a single leg lifting, the lifting point must be vertically above the center of gravity of the lifted object.

b) If lifting with two legs, the lifting points should be located on both sides of the cargo, and the hook should be above the center of gravity of the lifted object.

c) If lifting with three or four legs, the lifting points must be evenly located on the plane around the cargo, and the hook must be directly above the center of gravity of the lifted object.
