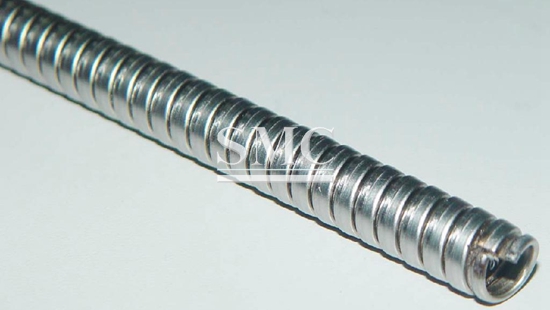

Stainless Steel Flexible Hose / Connector for Cable Protector
Grade: 304/316/321
Standard: ASTM, ASME, DIN, JIS, GB
Outside Diameter: 30mm - 400mm
Wall Thickness: 0.28mm - 1.0mm
Specifications of Stainless Steel Flexible Hose / Connector for Cable Protector:
1) Standard: ANSI, JIS, DIN, etc.
2) Grade: 304/316/321
3) OD range: 30mm - 400mm
4) Wall thickness range: 0.28mm - 1.0mm
5) Length: 1.5m or as demanded
6) Type: annular or helical corrugated type
7) Braided layer: single/double/three layer, etc. (according to the working pressure)
8) Braided mesh layer material: SS304/301
9) Max. working pressure: 10MPa
10) Working temperature: -200 ~ +600°C
11) Connection type: swivel or fixed flange
Features of Stainless Steel Flexible Hose / Connector for Cable Protector:
1) Flexibility
2) High resistance to corrosion
3) High resistance against to and UV radiation
4) Flame-resistant and self-extinguishing
5) Great for indoor or outdoor use
6) Interlocking connectors hook multiple cable Protector pieces together
7) Bright yellow safety lid with warning symbols
8) Straight pieces have (4) integrated safety reflectors
9) Each turn piece provides a 22-1/2° bend
10) Heavy duty commercial grade molded thermoplastic rubber
Packaging of Stainless Steel Flexible Hose / Connector for Cable Protector
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.
Applications of Stainless Steel Flexible Hose / Connector for Cable Protector:
1) Refineries
2) Chemical industries
3) Power plant
4) Reactor installation
5) Steel plant
6) High-pressure boiler pipe
7) Food industry
8) Other type of industries to convey oil, gasoline, LPG, toluene, benzene, petrol, alcohol, etc.
9) Other derivatives & highly corrosive chemical
