Stainless Steel Tube/Pipe For Heat Exchanger Tube
Grade: 201, 202, 301, 304, 304L, etc.
Standard: ASTM, AITI, JIS, GB
Wall Thickness: from 0.3 mm
Specifications of Stainless Steel Tubes for Heat Exchanger Tube:
1) Material: stainless steel
2) Heat exchanger area: 1m2 - 500m2
3) Shape: fixed pipe plate, floating head, U-type pipe
4) Structure: single channel, double channel and multi-channel
5) Used for evaporating, heating, condensing, cooling process
Various specifications available according to customer's requirements.

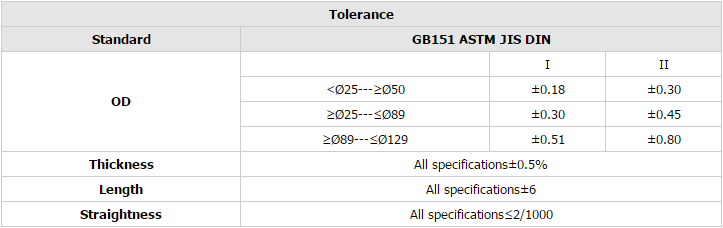

Tolerance of Stainless Steel Tubes for Heat Exchanger Tube:

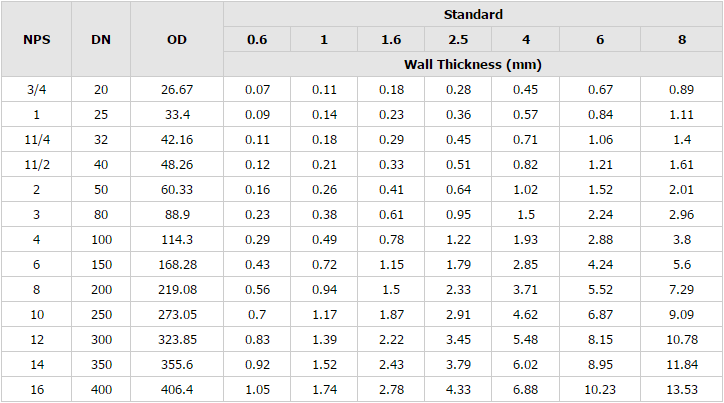

Wall Thickness Tolerance of Stainless Steel Tubes for Heat Exchanger Tube:
Manufacturing Process of Stainless Steel Pipes/Tubes for Heat Exchanger Tube
The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.
Packaging of Stainless Steel Tubes/Pipes for Heat Exchanger Tube
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
