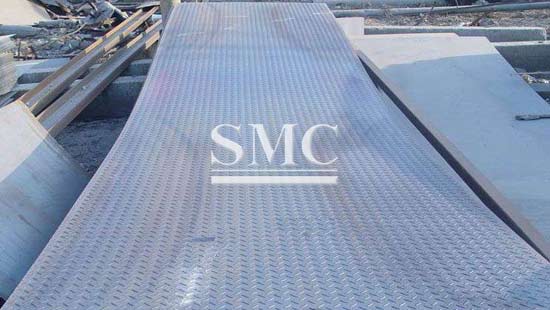

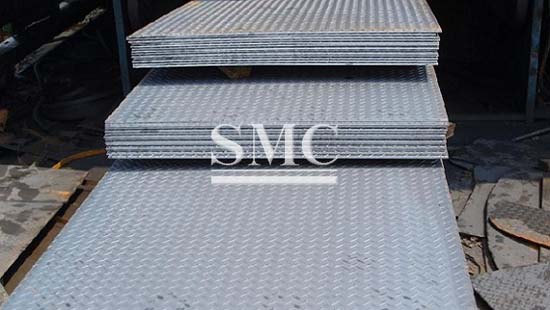

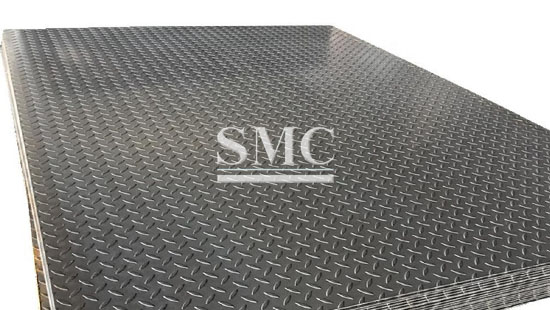

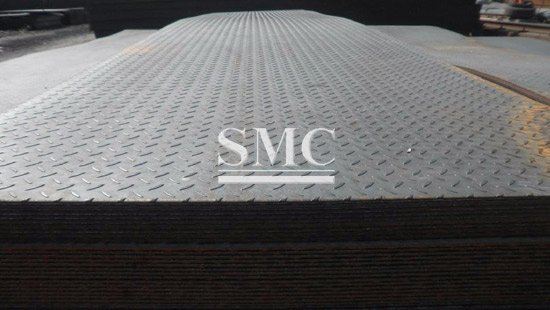

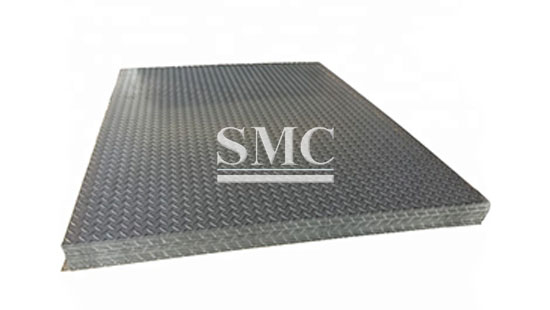

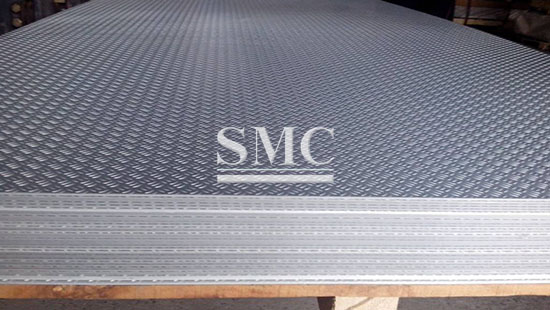

Steel Chequered Plate - Diamond Plate
Thickness: 2mm - 10mm
Width: 600mm - 2000mm
Length: 1000mm - 12000mm
Steel Chequered Plate is an ideal lightweight material with a regular pattern, such as diamonds, 5 bars and T patterns on one side, and a featureless reverse side. This type of metal is usually used in the areas that need slip-resistance and traction.
Parameters of Steel Chequered Plate:
|
Thickness |
Tolerance |
Weight (kg/ m2) |
||
|
Diamond Phombus |
Hyacinth bean |
Round bean |
||
|
2.5 |
±0.3 |
21.6 |
21.3 |
21.1 |
|
3 |
±0.3 |
25.6 |
24.4 |
24.3 |
|
3.5 |
±0.3 |
29.5 |
28.4 |
28.3 |
|
4 |
±0.4 |
33.4 |
32.4 |
323 |
|
4.5 |
0.4 |
37.3 |
36.4 |
36.2 |
|
5 |
0.4 |
42.3 |
40.5 |
40.2 |
|
-0.5 |
||||
|
5.5 |
0.4 |
46.2 |
44.3 |
44.1 |
|
-0.5 |
||||
|
6 |
0.5 |
50.1 |
48.4 |
48.1 |
|
-0.6 |
||||
|
7 |
0.6 |
59 |
52.6 |
52.4 |
|
-0.7 |
||||
|
8 |
0.6 |
66.8 |
56.4 |
56.2 |
Packaging of Steel Chequered Plate - Diamond Plate:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) SMC Standard
2) Customization
Service
To meet the entirety of our customers business needs, Shanghai Metal Corporation offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Shanghai Metal Corporation prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.
Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.
Applications of Steel Chequered Plate：
- Anti-skid and decoration
- Widely used in shipbuilding, automobile, tractor, rail car and building industry, etc.
- Foot floor plate
- Petrochemistry, chemistry, electricity, boiler and vessel manufacture
- Reactor, segregator, heat exchange facility
- Oil tank, liquid gas storage
- Nuclear reactor press shell, turbine and other machines, etc
