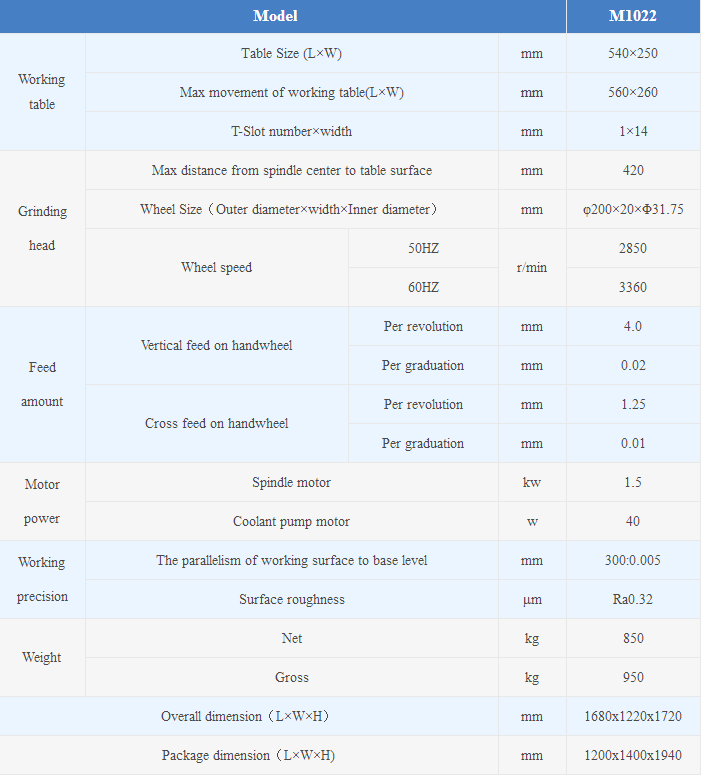

Table Size (L×W): 540×250mm
Max movement of working table(L×W): 560×260mm
T-Slot number×width: 1×14mm
Wheel speed:50HZ 2850r/min / 60HZ 3360r/min
Wheel Size(OD×WD×ID): φ200×20×Φ31.75mm
Spindle motor:1.5kw
Coolant pump motor:40w
Surface roughness:Ra0.32μm
Weight:850(kg)Net / 950(kg)Gross
Overall dimension(L×W×H):1680x1220x1720mm
Package dimension(L×W×H):1200x1400x1940mm

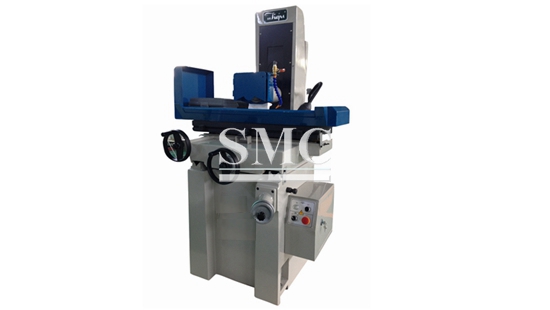

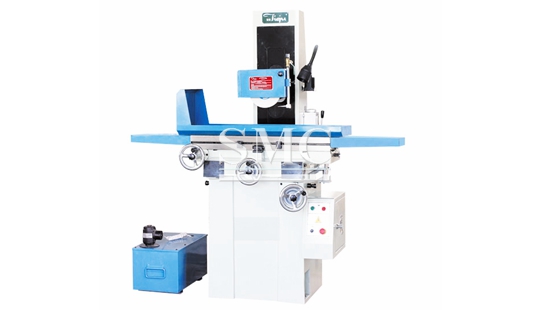

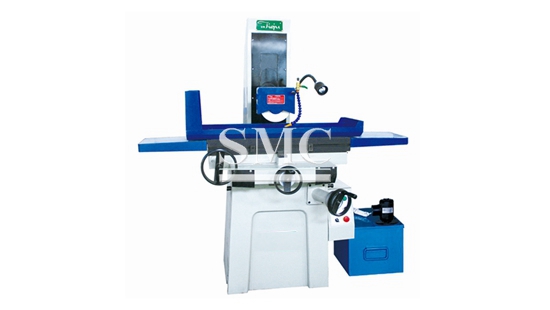

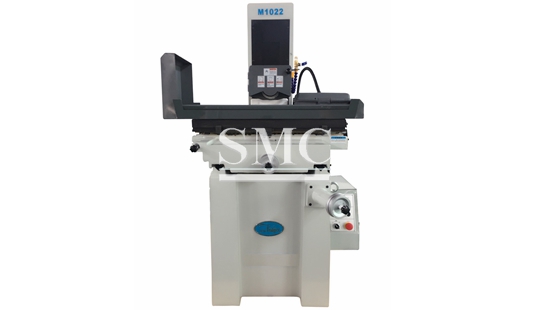

The product is suitable for manual surface grinder that is cost-effective, easy operation and simple and easy.
