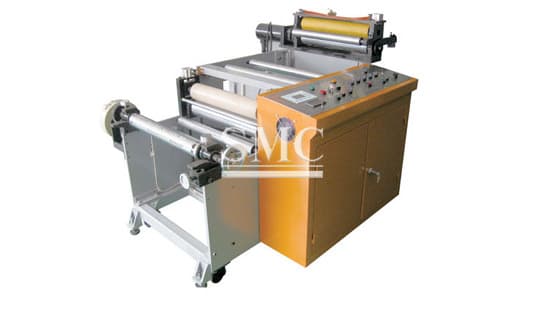

Automatic Feeder(with lubricating system):

Max. Material Roll Dia.: ￠650mm

Max. Material Roll Width: 650mm

Feeding Speed:10-30M/min

Feeding Length: 30-900mm

Feeding Tolerance: +/-0.3mm

Capacity: 4Kw

Voltage: 380V/220V

Weight:1T

Dimension: 1200x1200x1100mm (L*W*H)

Length Controller:700x720x550mm (L*W*H)

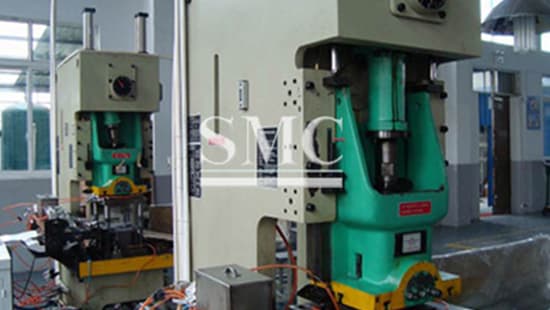

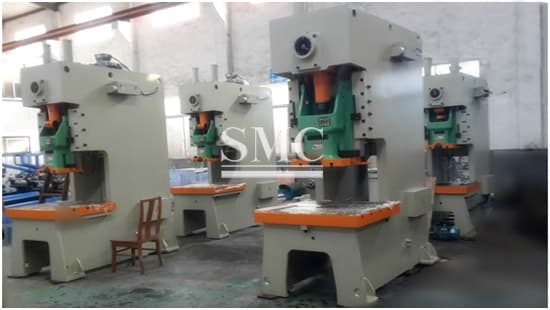

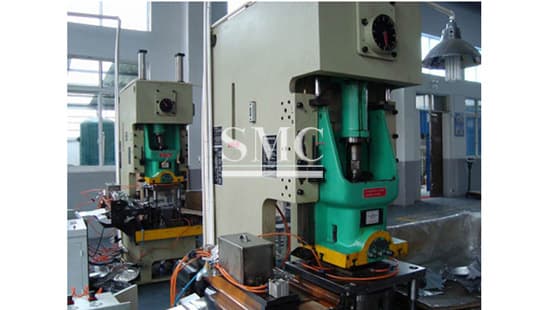

45T press:

Pressure: 550KN

Hole Size of Collecting Table: 300*300mm

Production Output: 40-80times/min

Board Thickness of Collecting Table: 50mm

Max. Height of Mould: 290mm(excluded working plate 50mm)

Slide Board Size: 220*400mm

The Distance from Center of Slide Piece and Punch Unit: 340mm

The adjustment height of Installation of Mould: 60mm

Size of Screw Hole of Mould: 50*60mm

Size of Collecting Table: 660*1000 mm*50 mm

Dimension: 1500*1125*2315mm (L*W*H)

Motor Capacity:7KW

Weight:5000kg

This production line can work automatically. Worker control and regulate this production line through electric control panel.

The feeding system control feeding length and stepping by computer, which assure a high-precision steps.

We can design and manufacture different machines on request. There is some difference in machines outer-appearance.

The press may be equipped with single cavity or multi-cavity moulds for wrinkle-wall or smooth-wall container production.
