Size: Max. 5000x3000mm (LXH)

Type: Finned type

Structure: Aluminum foil + copper tube

Color: customized

Product Detail | Technical Information | Packaging

Product Detail

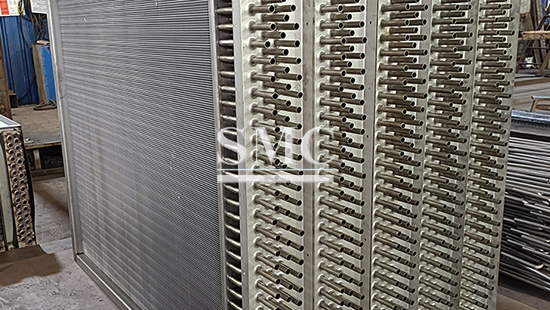

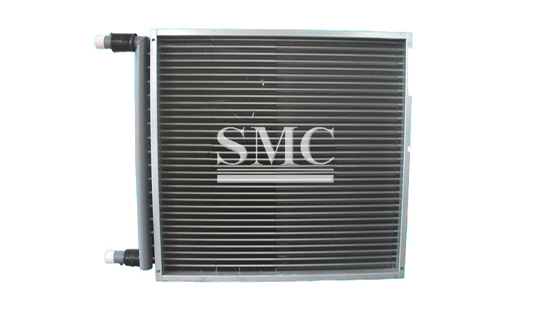

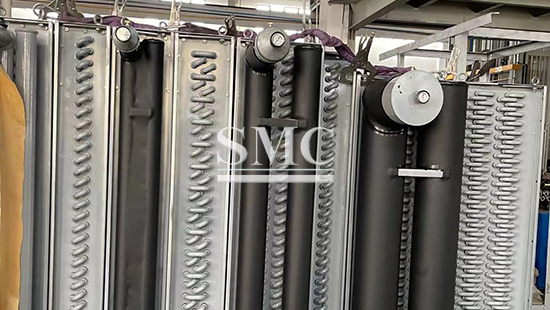

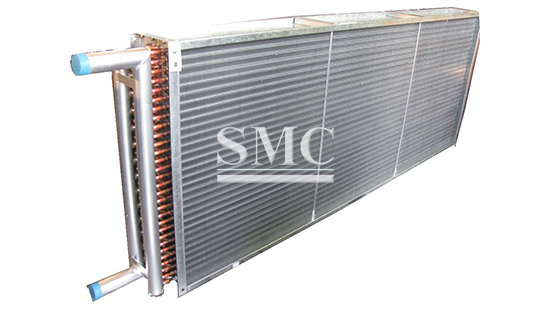

Shanghai Metal Corporation is a leading manufacturer and supplier of Aluminum Foil Copper Manifold Surface Air Cooler in China. The device can be connected with the master device to achieve the purpose of heating or cooling. This type of equipment is commonly used in air conditioning systems, especially in industrial centralized air supply drying and condensation systems.

Shanghai Metal adopt advanced UNILAB® Italy simulation selection software to meet customer customization needs. If you want to know more about Aluminum Foil Copper Manifold Surface Air Cooler, Hydrophilic Aluminum Foil Fin Copper Manifold Surface Air Exchanger, steel manifold hydrophilic aluminum foil fin surface cooler, Copper manifold copper foil fin surface cooler, Finned Heat Exchanger, or other heat exchanger, please feel free to contact us, we will reply you within 24 hours.

Size: Max. 5000x3000mm (LXH)
Material: Body Frame: GI steel or aluminum plate
Fin: aluminum foil
Fin type: Fenestration, flat, corrugated
Tube: copper tube (TP2, C1220)
Tube size: Dia9.52/12.7/15.88mm,etc
Manifold: Copper tube.
Liquid medium: water, vapor, glycol
Leak test: No leak under pressure test.

1) The heat dissipation fin is made of high purity aluminum foil, divided into wavy pattern and zigzag pattern. It is blanked by high-precision equipment twice. The contact surface is large, which enhances the strength of the fin and the effect of air turbulence.

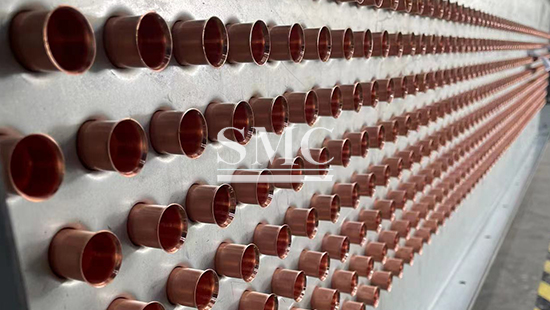

2) Copper pipe adopts high purity seamless copper pipe, long life, not easy to break corrosion

3) The fin and copper pipe through the mechanical expansion tube or high pressure hydraulic expansion tube, to ensure close contact, play a good heat transfer effect

4) According to the design flow rate, single and double reflux system is adopted in the coil loop, which has small water resistance and good heat exchange performance.

It is widely used in Industrial Factory Air Conditioner, Industrial Heat Exchanger, Aluminum Fin Heat Exchanger, Data Center Heat Exchanger, Shopping Mall Heat Exchanger, central air-conditioning, light industry and other refrigeration equipment industries.

No	Mould size	Finned type	Thickness mm	flanging height mm	Length	Material
1	φ719.0516.5	Waved/Casement	0.095-0.12	1.3-2.0	200-2600	Aluminum foil/copper foil
2	φ72118.19	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
3	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
4	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
5	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
6	φ7.942219.05	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
7	φ9.12521.65	Waved	0.095-0.12	2.0-5.0	280-6000	Aluminum foil/copper foil
8	φ9.5225.422	Waved/Casement	0.095-0.12	1.3-2.0	200-2500	Aluminum foil/copper foil
9	φ9.522521.65	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
10	φ9.5225.422	Waved/Casement	0.095-0.12	1.3-2.0	200-2500	Aluminum foil/copper foil
11	φ12.731.7527.5	Waved	0.095-0.2	2.0-5.0	280-6000	Aluminum foil/copper foil
12	φ12.731.7527.5	Waved	0.105-0.2	2.0-3.5	280-6000	Aluminum foil/copper foil
13	φ14.35050	Waved	0.105-0.2	2.0-5.0	280-6000	Aluminum foil/copper foil
14	φ15.8838.133	Waved	0.105-0.2	2.0-3.5	280-6000	Aluminum foil/copper foil
15	φ15.8838.133	Waved	0.105-0.13	2.0-3.5	280-6000	Stainless steel foil
16	Foil Finish	Inorganic Hydrophilic, Organic Hydrophilic, Organic Antibacterial Hydrophilic, Organic High Corrosion-resistant Hydrophilic, Black Epoxy High Corrosion-resistant Hydrophilic, Epoxy Phenolic Resin High Corrosion-resistant Hydrophilic, Organic Lyophobic
17	Color	Blue, Dark Blue, Light Golden, Golden, Dark Golden, Green, Light Green, Milk White, Black, other colors can be customized
*Other size can be customized, please contact us for more details

Packaging of Aluminum Foil Copper Manifold Surface Air Cooler

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Foam Paper carton, Pearl cotton carton, Wooden Pallet is adpoted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
