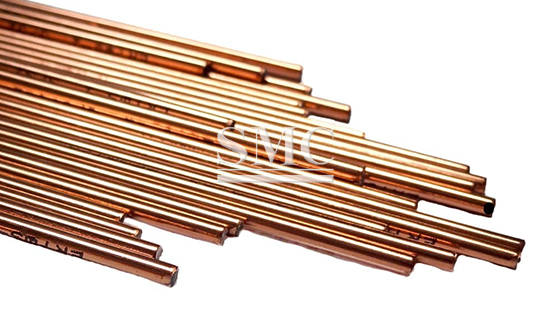

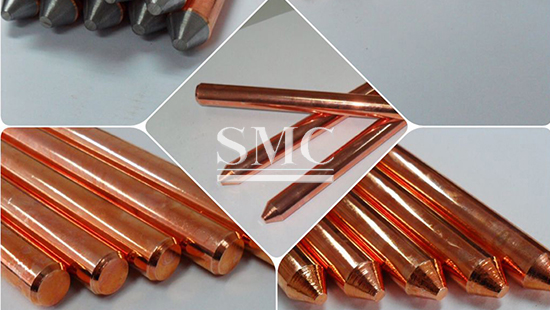

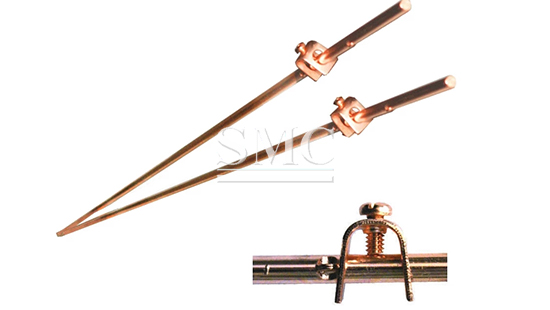

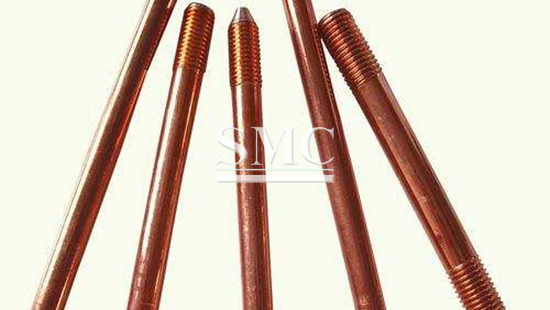

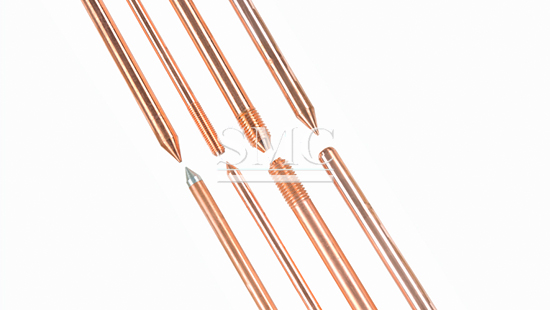

Copper Clad Steel Earth Rod / Copper Coated Steel Earth Rod
Steel material: Carbon steel Q235 and 99.95% Copper
Bar diameter: 12.7~32mm
Copper thickness: 0.254mm
Shanghai Metal Corporation is a leading Copper Coated Steel Rod manufacturer and supplier.
Copper Coated Steel Rod is a new type product of composite material which combines 99.9% high molecule copper by electroplating on low carbon steel core. It overcomes the original battery reaction existing in the traditional process of casing production, and solves the drawbacks of low purity of copper and negative and positive surface of copper layer thickness existing in hot-dip continuous casting process production. During the construction process, the electroplated copper clad steel can be freely bent and cut in length, and the copper layer on the surface will not peel off and fall off. Therefore, in recent years, electroplated copper clad steel as grounding material has been widely recognized and praised by customers at home and abroad.
If you want to know more about our Copper Coated Steel Rod or other Copper Coated product price please feel free to contact us, we will reply you within 24 hours.
Features of Copper Clad Steel Earth Rod:
1.99.9% pure electrolytic copper coating
2.Tensile strength is equal or above 600N/mm2
3.The rods are manufactured in accordance with BSEN50164-2
4.Minimum copper coating of 10 mils on rods
5.Molecular bond to nickel-sealed high strength steel core
6.Rods have a low carbon steel core and tip that provide superior strength when driving
7.Minimum copper coating of 10 mils on rods
8.Copper coating plasticity: bend the ground rod to 180 degree, the copper layer doesn’t break or peel
9.The usage life can be at least 40 years
Applications of Copper Clad Steel Earth Rod:
Copper Coated Ground Rod are widely used in power plants, substation, transmission line tower,communication base stations, airports, railways, all kinds of high-rise buildings, microwave relay station,the networkcomputer room, grounding,oil refinery, oil depots and other places to anti-static grounding,protective grounding, working, etc.
