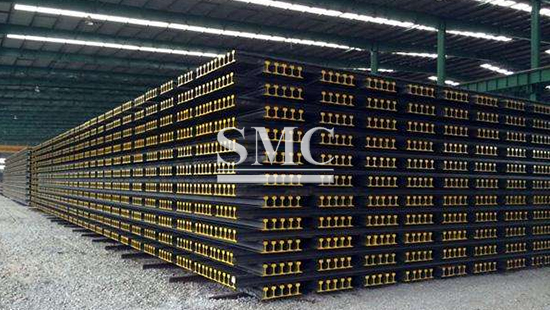

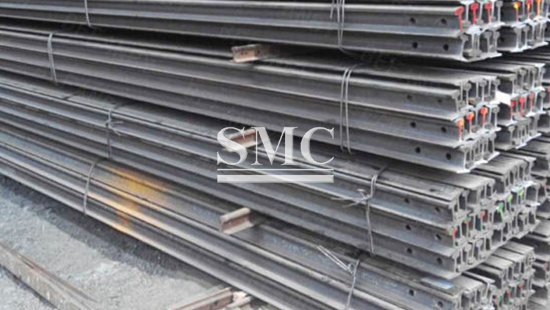

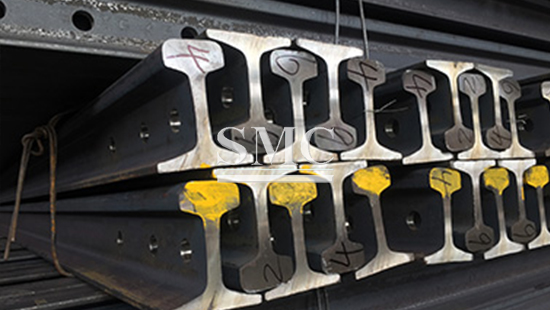

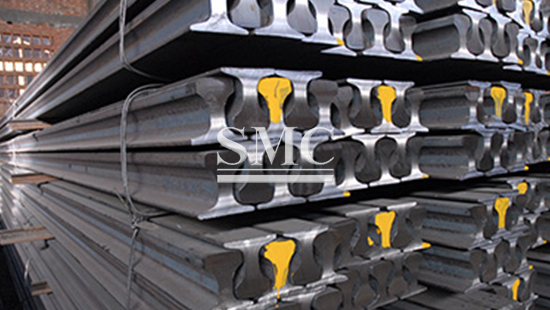

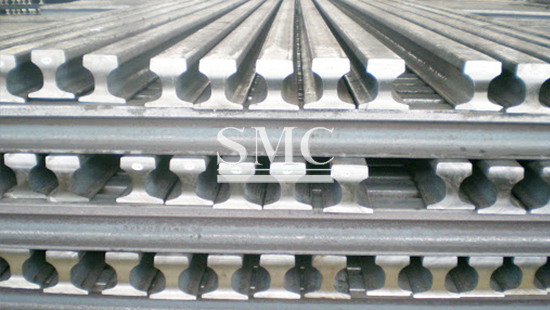

Crane Rail
Grade: Q235,50Q,50Mn,55Q,U71Mn,U75V
Type: Light Rail
Standard: AISI, ASTM, GB
Shanghai Metal Corporation is a leading Crane Rail manufacture and supplier, ability to stick to tight customer delivery schedules and global shipping capability make us a natural choice for major projects worldwide, working alongside leading crane rail installers.
With a regular rolling programme of each rail size coupled with our dedicated crane rail stock-holding facilities, we offer customers all over the world just-in-time delivery.
Whether for overhead gantry or floor mounted-cranes, we understand that consistency of product is critical. Our rail is checked for straightness and quality in our dedicated inspection facility.
-
Rail
Crane
Heavy duty transportation
Crane tower
-
Technical Information of Crane Rail:
|
Commodity |
Size (kg/m) |
Material (Grade) |
Standard |
Sectional Dimension (mm) |
Theory Weight (kg/m) |
Length (m/pc) |
Packed in Bundle with Iron Wire (pcs/bundle) |
|||
|
Head |
Height |
Bottom |
Web |
|||||||
|
Light Rail |
8 |
Q235 |
Q/YG01-2014 |
24.00 |
63.50 |
52.50 |
6.50 |
8.42 |
6.00 |
55 |
|
12 |
Q235 |
GB11264-2012 |
38.10 |
69.85 |
69.85 |
7.54 |
12.20 |
36 |
||
|
15 |
Q235/55Q |
GB11264-2012 |
42.86 |
79.37 |
79.37 |
8.33 |
15.20 |
6、8、9、10 |
28 |
|
|
18 |
Q235/55Q |
GB11264-2012 |
40.00 |
90.00 |
80.00 |
10.00 |
18.06 |
21 |
||
|
22 |
Q235/55Q |
GB11264-2012 |
50.80 |
93.66 |
93.66 |
10.72 |
22.30 |
21 |
||
|
24 |
Q235/55Q |
GB11264-2012 |
51.00 |
107.00 |
107.00 |
10.90 |
24.46 |
21 |
||
|
30 |
Q235/55Q |
GB11264-2012 |
60.33 |
107.95 |
107.95 |
12.30 |
30.10 |
15 |
||
|
Commodity |
Size (kg/m) |
Material (Grade) |
Standard |
Sectional Dimension (mm) |
Theory Weight (kg/m) |
Length (m/pc) |
Packed in Bundle with Iron Wire (pcs/bundle) |
|||
|
Head |
Height |
Bottom |
Web |
|||||||
|
Heavy Rail |
38 |
U71Mn |
GB2585-2007 |
68.00 |
134.00 |
114.00 |
13.00 |
38.73 |
12、12.5 |
10 |
|
43 |
U71Mn |
GB2585-2007 |
70.00 |
140.00 |
114.00 |
14.50 |
44.65 |
10 |
||
|
50 |
U71Mn |
GB2585-2007 |
70.00 |
152.00 |
132.00 |
15.50 |
51.51 |
10 |
||
|
Type |
Size (kg/m) |
Material (Grade) |
Sectional Dimension (mm) |
Theory Weight (kg/m) |
Length (m/pc) |
|||
|
Head |
Height |
Bottom |
Web |
|||||
|
QU70 |
53 |
U71Mn |
70 |
120 |
120 |
28 |
52.80 |
12 |
|
QU80 |
64 |
U71Mn |
80 |
130 |
130 |
32 |
63.69 |
12 |
|
QU100 |
89 |
U71Mn |
100 |
150 |
150 |
38 |
88.96 |
12 |
|
QU120 |
118 |
U71Mn |
120 |
170 |
170 |
44 |
118.10 |
12 |
|
Type |
Material (Grade) |
Sectional Dimension (mm) |
Theory Weight (kg/m) |
||||||
|
Height |
Bottom |
Head A |
Head B |
Channel A |
Channel B |
Web |
|||
|
59R1 |
U71Mn |
180 |
180 |
113 |
56 |
42 |
15 |
12 |
58.97 |
|
59R2 |
U71Mn |
180 |
180 |
113 |
55.83 |
42.52 |
14.65 |
12 |
58.14 |
|
60R1 |
U71Mn |
180 |
180 |
113 |
36 |
36 |
21 |
12 |
60.59 |
|
60R2 |
U71Mn |
180 |
180 |
113 |
36 |
36.34 |
21 |
12 |
59.75 |
|
Type |
Material (Grade) |
Sectional Dimension (mm) |
Theory Weight (kg/m) |
Length (m) |
|||
|
Head |
Height |
Bottom |
Web |
||||
|
A55 |
900A |
55 |
65 |
150 |
31 |
31.80 |
10 to 12 |
|
A65 |
900A |
65 |
75 |
175 |
38 |
43.10 |
10 to 12 |
|
A75 |
900A |
75 |
85 |
200 |
45 |
56.20 |
10 to 12 |
|
A100 |
900A |
100 |
95 |
200 |
60 |
74.30 |
10 to 12 |
|
A120 |
900A |
120 |
105 |
220 |
72 |
100.00 |
10 to 12 |
Packaging of Crane Rail:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Application of Crane Rail:
- Rail
- Crane
- Heavy duty transportation
- Crane tower
