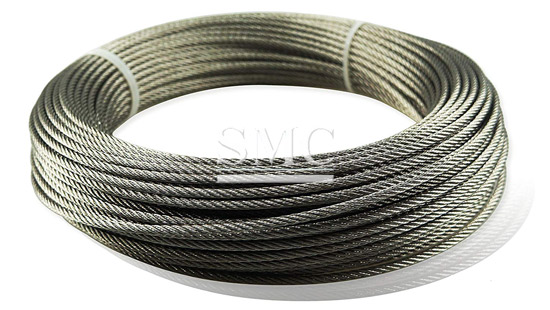

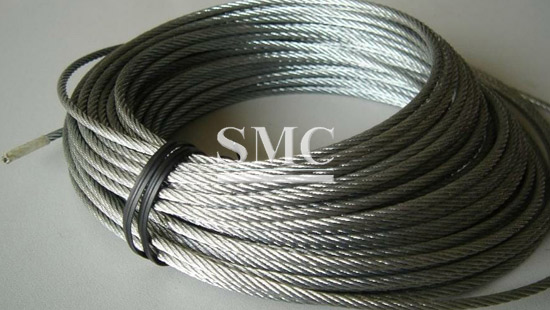

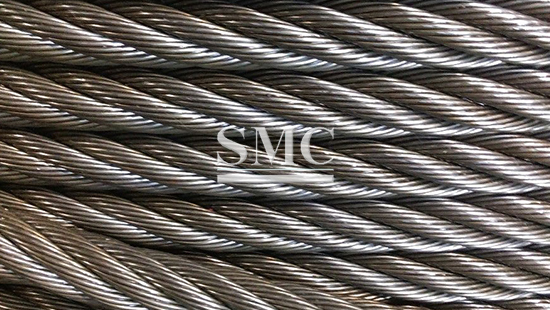

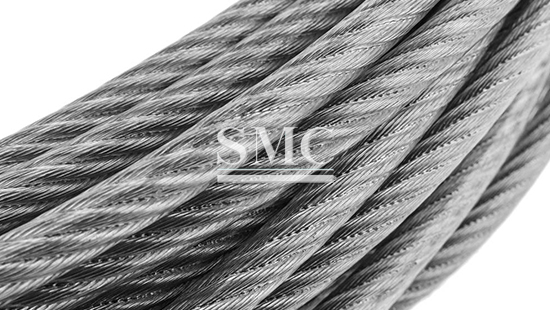

Steel Wire Rope/ Steel Cable
Material: Galvanised, ungalvanised or stainless steel,etc
Application: Elevator, crane lifting, hanging basket, aircraft, marine, logging

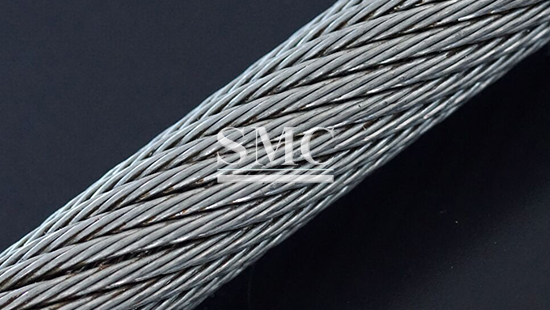

Steel wire rope is used across a wide spectrum of industries for many applications. A steel wire rope is made up of steel wires that are twisted to form strands. The strands are in turn twisted to form steel wire ropes of different sizes, depending on the desired strength of the steel wire rope. Steel wire ropes are consumables which may be discarded when worn out. Steel wire ropes are used in mooring, towing and lifting systems.
If you want to know more about Steel wire rope or Steel wire rope price please feel free to contact us, we will reply you within 24 hours
-
Wire Rope range:
- 9×19S+IWR, 9×19W+IWR, 9×21Fi+ IWR, 9×19S+9×7+Fc
- 9×19W+9×7+Fc, 9×21Fi+9×7+Fc
- 8×19S+Fc, 8×19W+Fc, 8×25Fi+Fc
- IWRC 6×Fi(29)、IWRC 6×WS(31)、IWRC 6×WS(36)
- 34×7+Fc, 34×7+IWS, 36×7+Fc, 36×7+IWS
- 17×7+Fc, 17×7+IWS, 18×7+Fc, 18×7+IWS, 18×19+Fc, 18×19+IWS
- 18×19S+Fc, 18×19S+IWS, 18×19W+Fc, 18×19W+IWS, etc.
-
The following abbreviations are commonly used to specify a wire rope:
|
Abbr. |
Description |
|
FC |
Fibre core |
|
FSWR |
Flexible steel wire rope |
|
FW |
Filler wire |
|
IWR |
Independent wire rope |
|
IWRC |
Independent wire rope core |
|
J |
Jute (fibre) |
|
LH |
Left hand lay |
|
LL |
Lang's lay |
|
NR |
Non-rotating |
|
OL |
Orcfnary lay |
|
RH |
Right hand lay |
|
S |
Seale |
|
SF |
Seale filler wire |
|
SW |
Seale Warrington |
|
SWL |
Safe working load |
|
TS |
Triangular strand |
|
W |
Warrington |
|
WF |
Warriflex |
|
WLL |
Waiting load limit |
|
WS |
Warrington Seale |

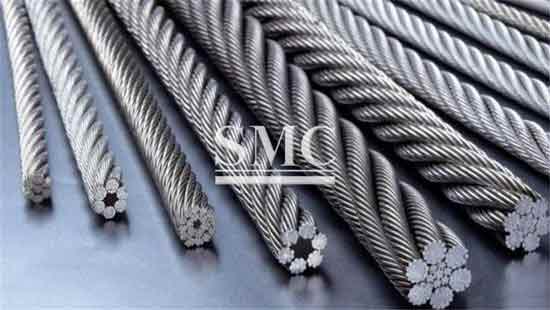

Different Cross-sectional Views of Special Wire Ropes:
|
8X19S+FC, 8xl9W+Fc, 8x25FI+Fc |
||||||||
|
Structure |
8xl9S+Fc |
8xl9W+Fc |
8x25Fi+Fc |
|||||
|
Nominal diameter |
Weight |
Minimum breaking force /kN |
||||||
|
mm |
kg/100m |
Dual Intensity /MPa |
Single Intensity /MPa |
|||||
|
1180/1770 |
1320/1620 |
1370/1770 |
1570/1770 |
1570 |
1620 |
1770 |
||
|
81) |
21.8 |
25.7 |
26.5 |
28.1 |
30.8 |
29.4 |
30.4 |
33.2 |
|
9 |
27.5 |
32.5 |
|
35.6 |
38.9 |
37.3 |
— |
42 |
|
9.5 |
30.7 |
36.2 |
37.3 |
39.7 |
43.6 |
41.5 |
42.8 |
46.8 |
|
101) |
34 |
40.1 |
41.3 |
44 |
48.1 |
46 |
47.5 |
51.9 |
|
111) |
41.1 |
48.6 |
50 |
53.2 |
58.1 |
55.7 |
57.4 |
62.8 |
|
12 |
49 |
57.8 |
59.5 |
63.3 |
69.2 |
66.2 |
68.4 |
74.7 |
|
12.7 |
54.8 |
64.7 |
66.6 |
70.9 |
77.5 |
74.2 |
76.6 |
83.6 |
|
131) |
57.5 |
67.8 |
69.8 |
74.3 |
81.2 |
77.7 |
80.2 |
87.6 |
|
14 |
66.6 |
78.7 |
81 |
86.1 |
94.2 |
90.2 |
93 |
102 |
|
14.3 |
69.5 |
82.1 |
|
— |
98.3 |
— |
— |
— |
|
15 |
76.5 |
90.3 |
— |
98.9 |
108 |
104 |
— |
117 |
|
161) |
87 |
103 |
106 |
113 |
123 |
118 |
122 |
133 |
|
17.5 |
104 |
123 |
— |
— |
147 |
— |
— |
— |
|
18 |
110 |
130 |
134 |
142 |
156 |
149 |
154 |
168 |
|
191) |
123 |
145 |
149 |
159 |
173 |
166 |
171 |
187 |
|
20 |
136 |
161 |
165 |
176 |
192 |
184 |
190 |
207 |
|
20.6 |
144 |
170 |
— |
— |
204 |
— |
— |
— |
|
221) |
165 |
194 |
200 |
213 |
233 |
223 |
230 |
251 |
|
JIS Series of product structure—IWRC 6xFI(29)、IWRC 6xWS(31)、IWRC 6xWS(36) Breaking load |
|||
|
The implementation of this family of products Q/320202AABL01-2006 Enterprise Standard (JISG3525： 1998) |
|||
|
|
Steel Plug 29 Wire 6 Unit |
Steel Western Watts Unit 31 Wire 6 Unit |
Steel Western Watts 36 Wire 6 Unit |
|
Structure tag |
IWRC 6xFi(29) |
IWRC 6xWS(31) |
IWRC 6xWS(36) |
|
Nominal diameter |
Breaking load kN |
weight |
|
|
mm |
Smooth, galvanized |
kg/m |
|
|
|
B |
|
|
|
10 |
66.2 |
0.430 |
|
|
11.2 |
83 |
0.539 |
|
|
12.5 |
103 |
0.672 |
|
|
14 |
130 |
0.843 |
|
|
16 |
169 |
1.100 |
|
|
18 |
214 |
1.390 |
|
|
20 |
265 |
1.720 |
|
|
22.4 |
332 |
2.160 |
|
|
25 |
414 |
2.690 |
|
|
28 |
519 |
3.370 |
|
|
30 |
596 |
3.870 |
|
|
31.5 |
657 |
4.270 |
|
|
33.5 |
743 |
4.830 |
|
|
35.5 |
834 |
5.420 |
|
|
37.5 |
931 |
6.050 |
|
|
40 |
1060 |
6.880 |
|
|
34x7+Fc, 34X7+IWS, 36x7+Fc, 36x7+IWS Mechanical Properties |
||||||||||||
|
Frame |
34x7+Fc |
34x7+IWS |
36x7+Fc |
36x7+IWS |
||||||||
|
Nominal wire rope diameter |
Reference weight |
Nominal tensile strength of steel wire rope/MPa |
||||||||||
|
mm |
kg/100m |
1570 |
1670 |
1770 |
1870 |
1960 |
||||||
|
|
|
Minimum pull rope breaking/kN |
||||||||||
|
|
Fiber Core |
Steel core |
Fiber Core |
Steel core |
Fiber Core |
Steel core |
Fiber Core |
Steel core |
Fiber Core |
Steel core |
Fiber Core |
Steel |
|
16 |
99.8 |
110 |
124 |
128 |
132 |
136 |
140 |
144 |
147 |
152 |
155 |
160 |
|
18 |
126 |
139 |
157 |
162 |
167 |
172 |
177 |
182 |
187 |
193 |
196 |
202 |
|
20 |
156 |
172 |
193 |
200 |
206 |
212 |
218 |
225 |
230 |
238 |
241 |
249 |
|
22 |
189 |
208 |
234 |
242 |
249 |
257 |
264 |
272 |
279 |
288 |
292 |
302 |
|
24 |
225 |
248 |
279 |
288 |
296 |
306 |
314 |
324 |
332 |
343 |
348 |
359 |
|
26 |
264 |
291 |
327 |
337 |
348 |
359 |
369 |
380 |
389 |
402 |
408 |
421 |
|
28 |
306 |
337 |
379 |
391 |
403 |
416 |
427 |
441 |
452 |
466 |
473 |
489 |
|
30 |
351 |
387 |
435 |
449 |
463 |
478 |
491 |
507 |
518 |
535 |
543 |
561 |
|
32 |
399 |
440 |
495 |
511 |
527 |
544 |
558 |
576 |
590 |
609 |
618 |
638 |
Packing of Steel Wire Rope:
Shangahi Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Service
To meet the entirety of our customers business needs, SMC offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. SMC prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.
Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

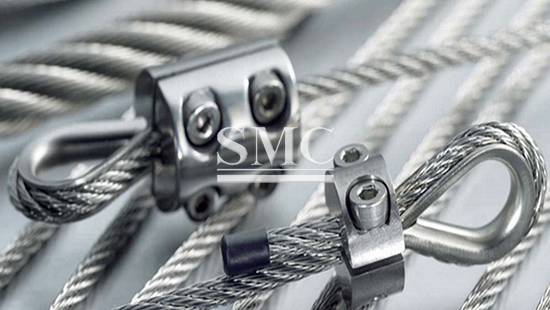

Application of Steel Wire Rope:
- Construction and Offshore rigging
- Marine Industry and Ministry of Defence divisions
- be used for elevator, crane lifting, hanging basket, colliery steel, seaport, and oilfield.
