Thickness: 0.3mm - 2.5mm

Width: 800mm - 1700mm

Coil ID: 610mm/508mm

Product Detail | Technical Information | Packaging | More

Product Detail

The most advanced continuous electro-galvanizing line, introduced by ShanghaiMetal, is able to produce high quality & excellent property EGI with various surface treatment. Those EGI plate is widely used in home appliance, office equipment, furniture, automobile industry.

Shanghai Metal Corporation is a professional manufacturer and supplier of Electrogalvanized Steel Coil & Sheet with high quality and reasonable price. If you want to know more about Electrogalvanized Steel Coil & Sheet products or Electrogalvanized Steel Coil & Sheet price please feel free to contact us, we will reply you within 24 hours.

Grade: SECC, SECD, SECE, etc.
Standard: JIS G3313-1998, ASTM 1591-98
Coating mass(g/m2): 20/20 or as per client's request
Surface treatment: Chromate, Oil, Phosphate, Anti-finger
Features: corrosion resistance, weldability, formability, and paint adhesion

Available Sizes:

Thickness	0.3mm - 2.5mm
Width	800mm - 1700mm
Length	Steel Plate	1000mm-6000mm
	Steel Coil	Coil ID 610mm/508mm

1. Refrigerator
2. Air conditioning
3. Microwave ovens
4. Washing machine
5. Automobiles: air filters, fans, fuel tanks, etc.
6. Building constructions: interior and exterior decoration, roofing, ductworks, HVAC products, flashing, doors, sashes, etc.

Standard & Grade of Electro Galvanized Steel Coil & Sheet:

Standard	EN10271-1998	JIS G3313-1998	GB/T17675-1995	ASTM A591-98
Grade	DC01+ZN	SECC	DX1	CS
	DC03+ZN	SECD	DX2	DS
	DC04+ZN	SECE	DX3	DDS
	DC05+ZN	-	-	-
	DC06+ZN	-	-	-

Specified Value For Coating Mass of Electrogalvanized Steel Coil & Sheet:

Coating mass as recommended g/m2	g/m2 Min value at one point(per side)	g/m2 Min value at three point(per side)
10/10	8.5	10
20/20	17	20
30/30	25.5	30
40/40	34	40

Mechanical property:

Steel Grade	Aging characteristics	Yield strength MPA ≤	Tensile strength MPA ≥	Elongation (L0=50mm, b=25mm)% ≥
				nominal thickness/mm
				0.4~<0.6	0.6~<1.0	1.0~<1.6	≥1.6
SECC	-	-	270	34	36	37	38
SECD	products shall be free from stretcher strains marks within 3 months from manufactured date	240	270	36	38	39	40
SECE	products shall be free from stretcher strains marks within 6 months from manufactured date	220	270	38	40	41	42

Flatness-specified value:

Normial width	Flatness not more than
	Normal (PF.A)		Restricted(PF.B)
	Nominal thickness		Nominal thickness/mm
	<0.7	0.7~<1.2	≥1.2	<0.7	0.7~<1.2	≥1.2
≤1200	10	8	7	5	4	3
>1200-1400	12	10	8	6	5	4

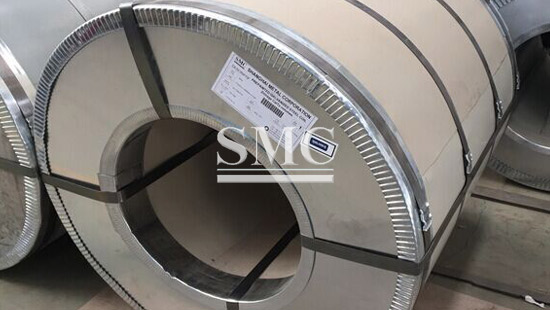

Packaging of Electro Galvanized Steel Coil & Sheet

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Electro Galvanized Steel Coil & Sheet:

1) Automobiles: air filters, fans, fuel tanks, etc.

2) Home appliances: refrigerator appliances, microwave ovens, printer, stereo equipment and other electrical applications

3) Building constructions: interior and exterior decorative materials, roofing, ductworks, HVAC products, flashing, doors, sashes, etc.
